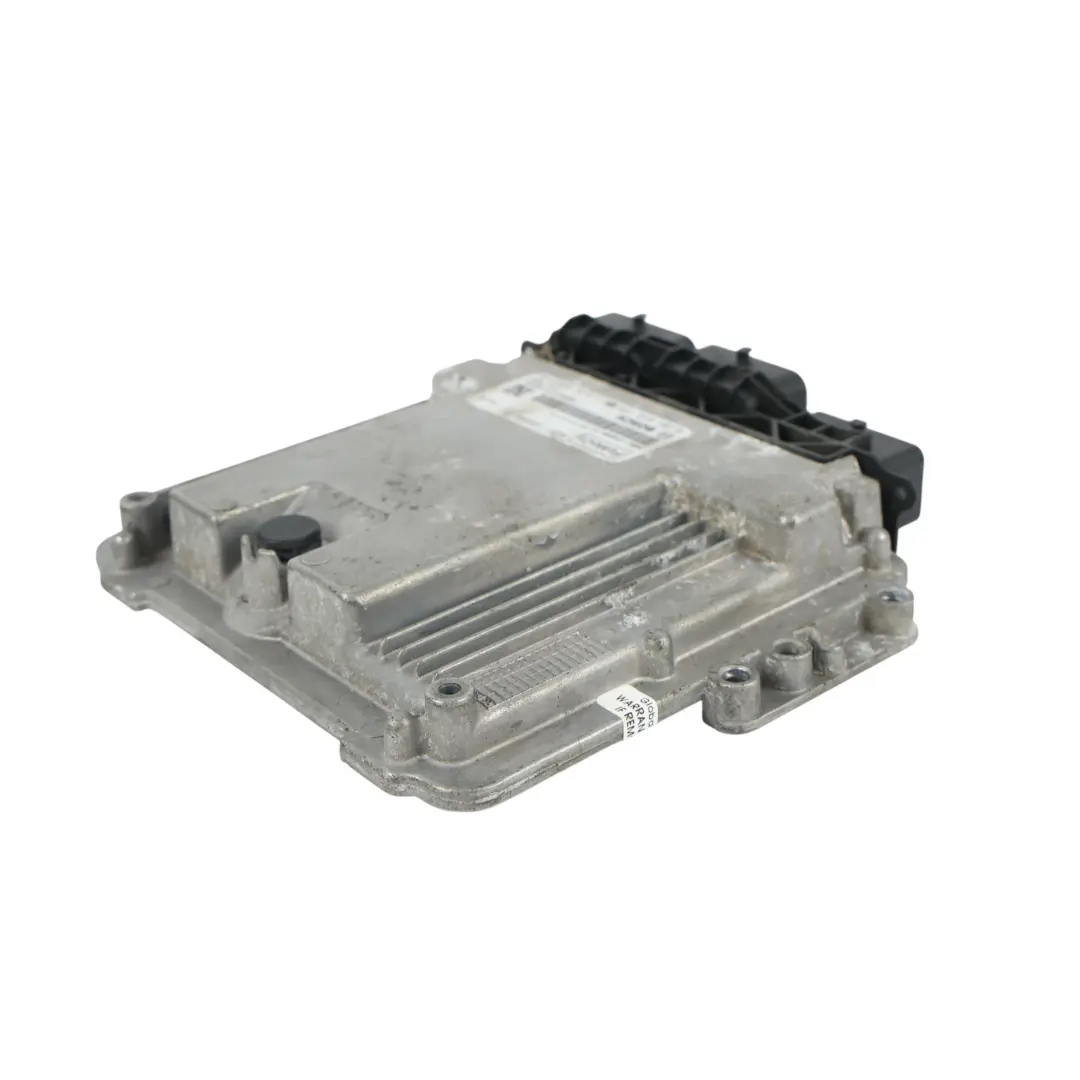

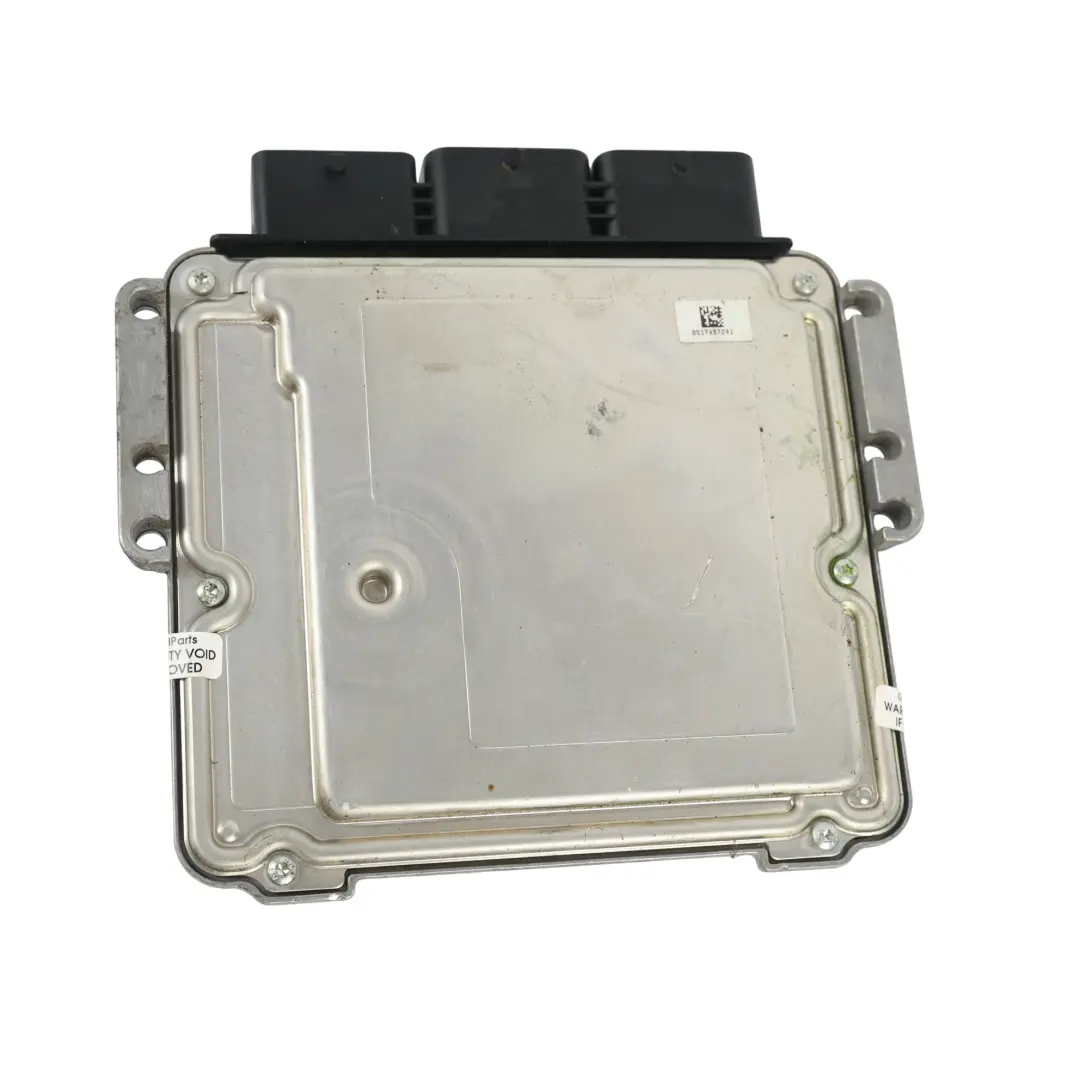

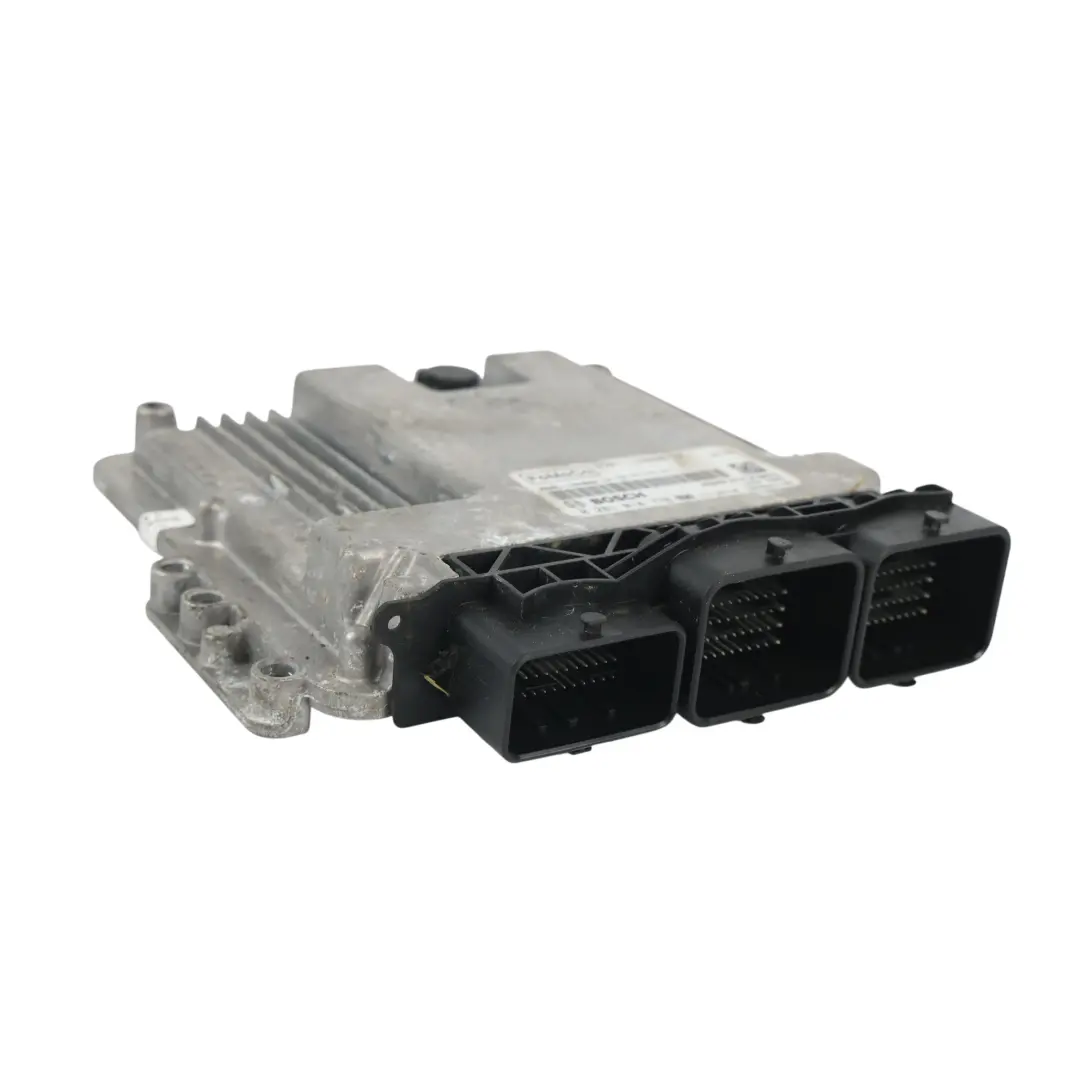

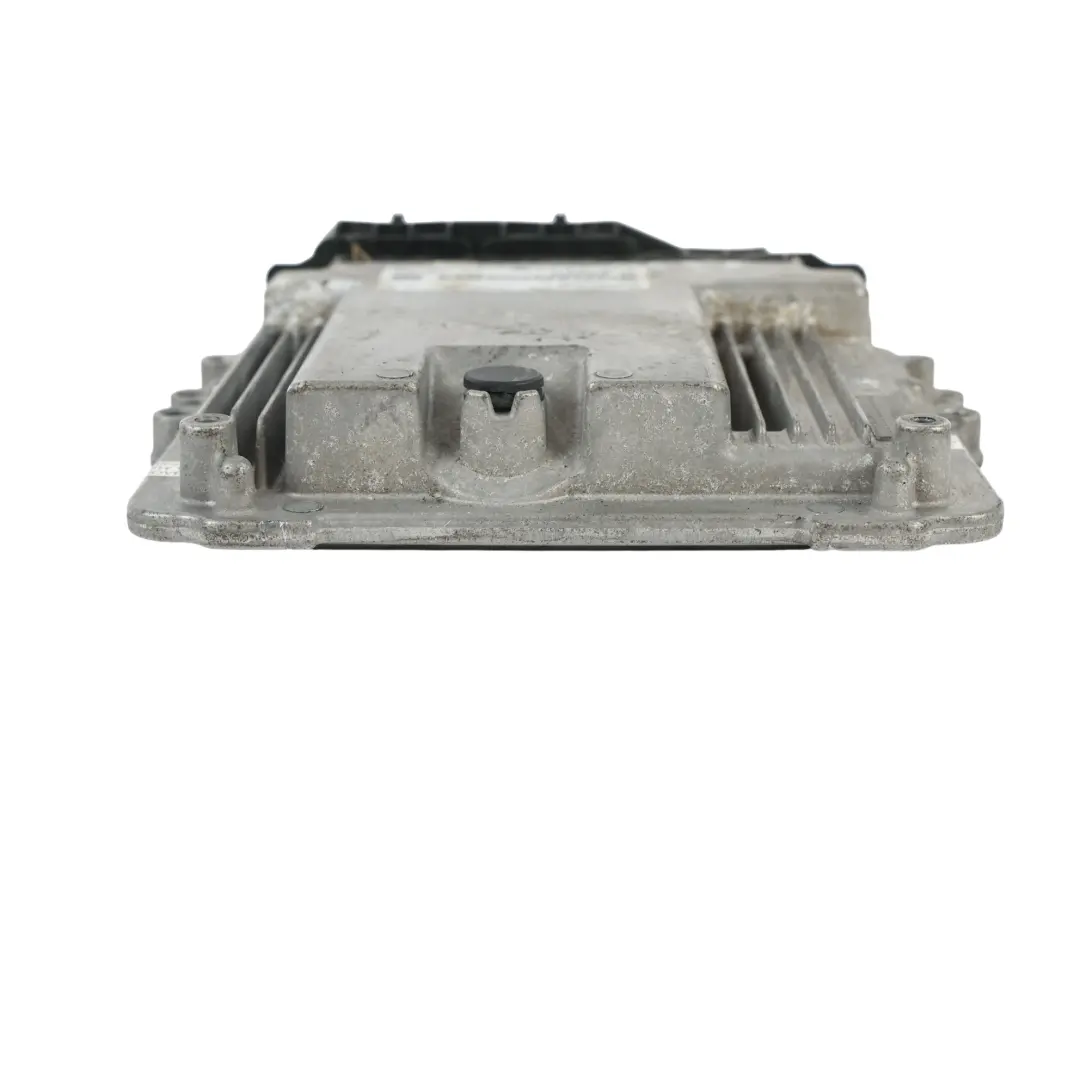

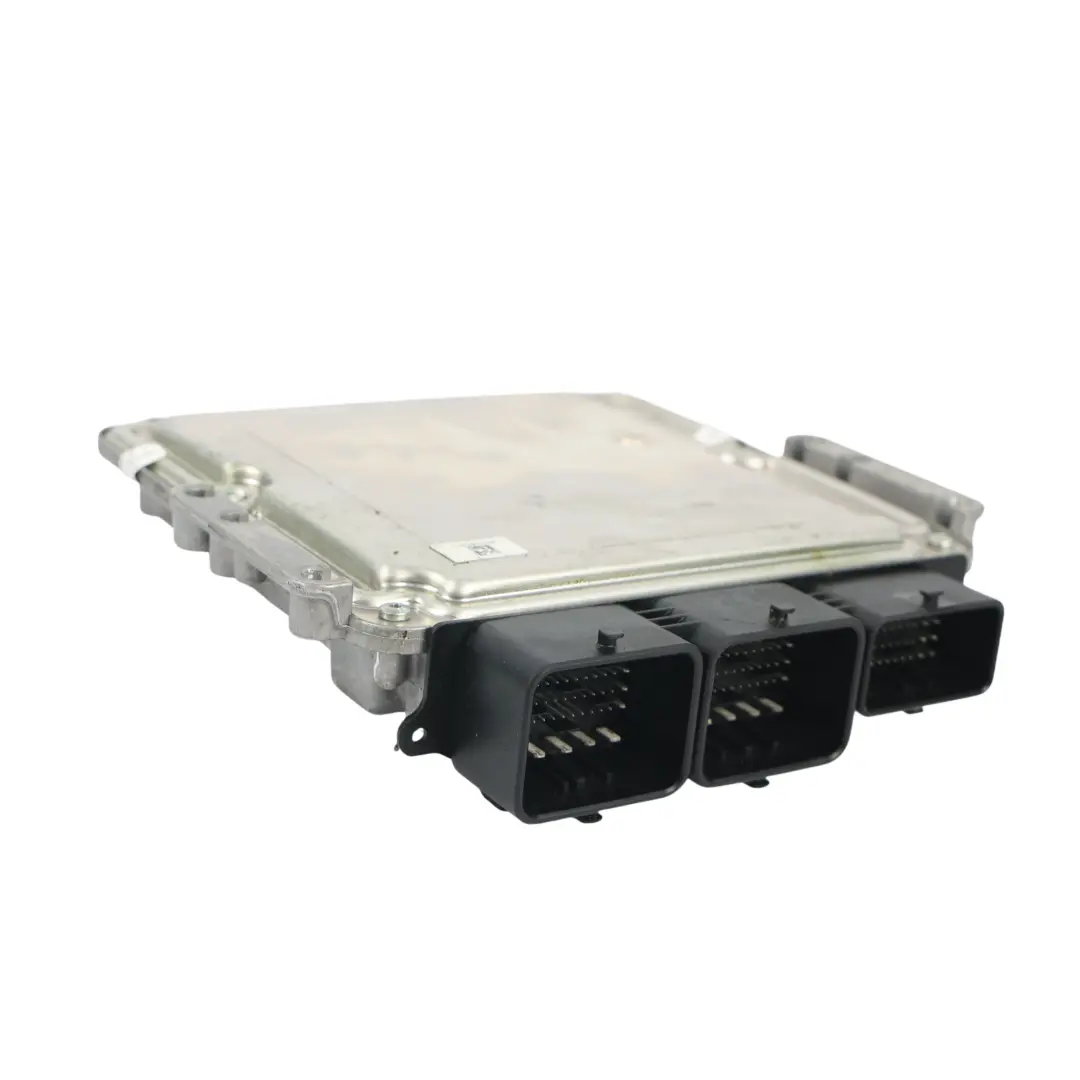

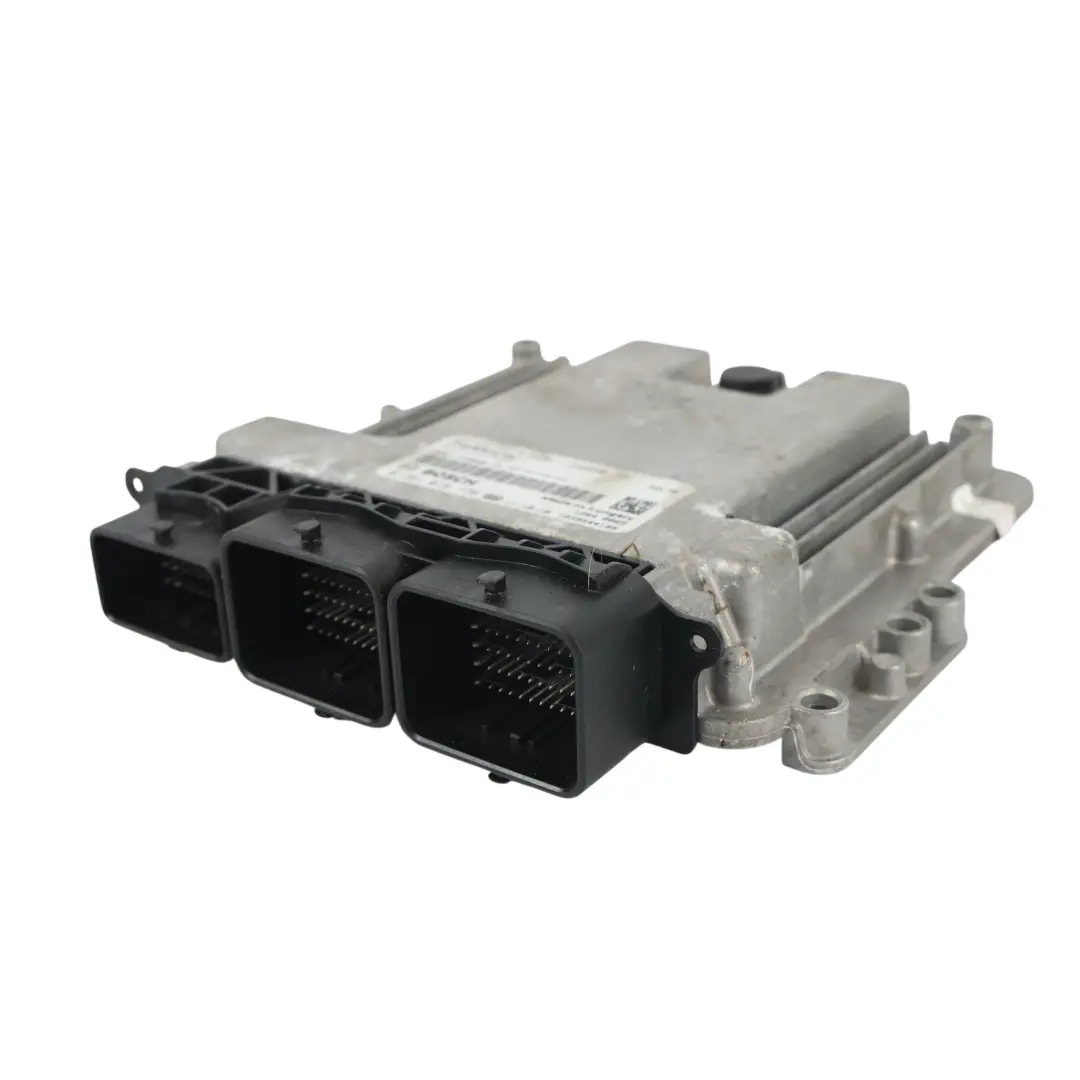

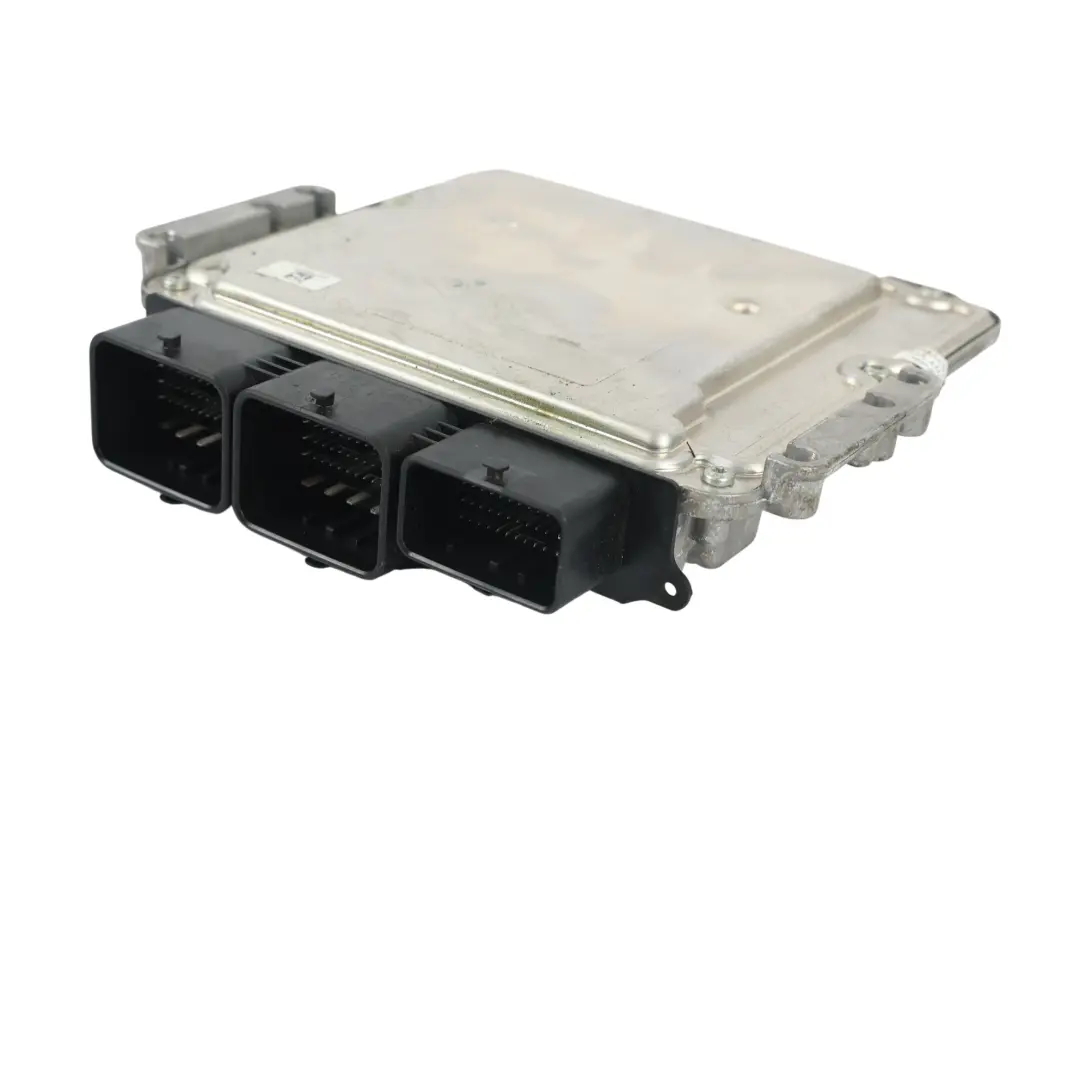

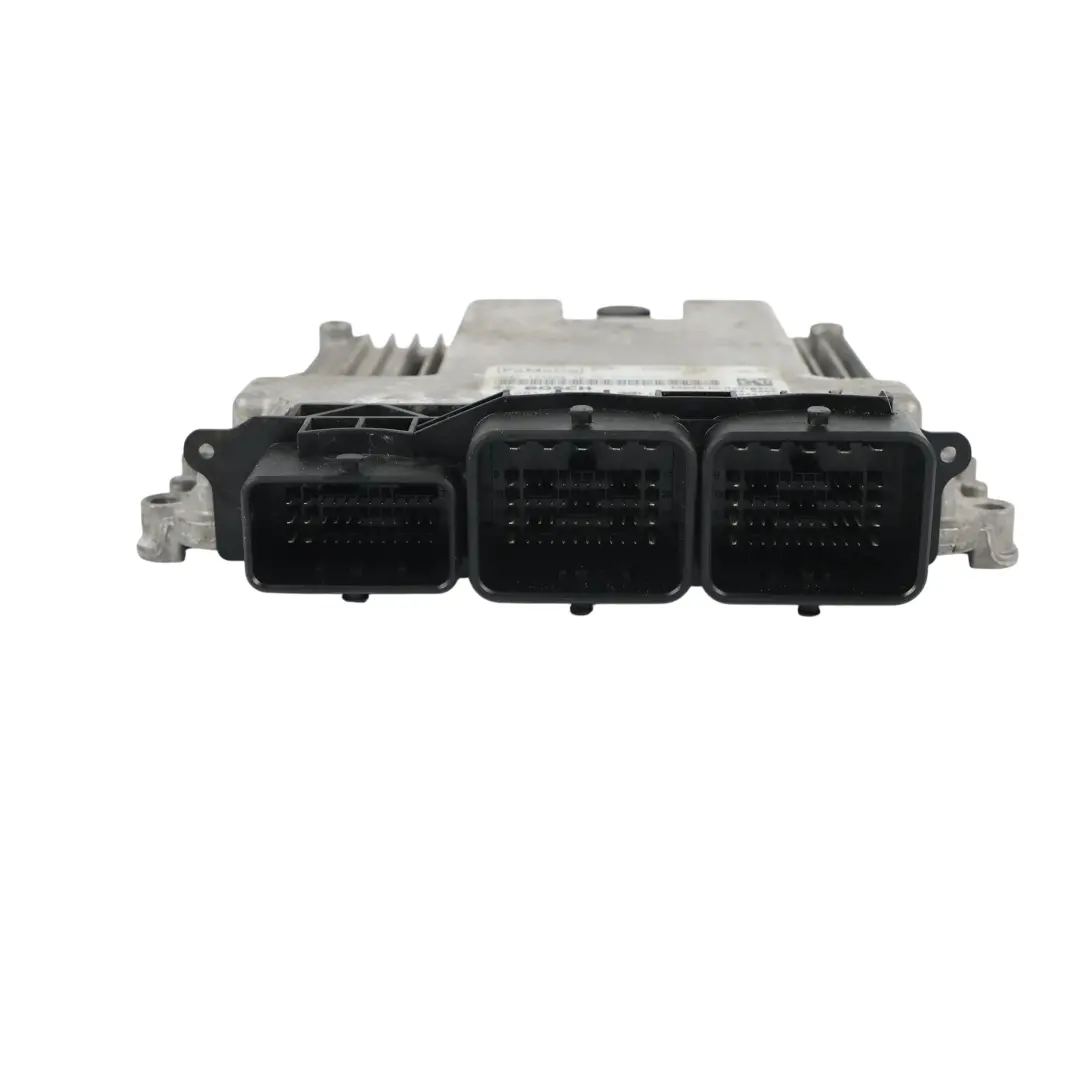

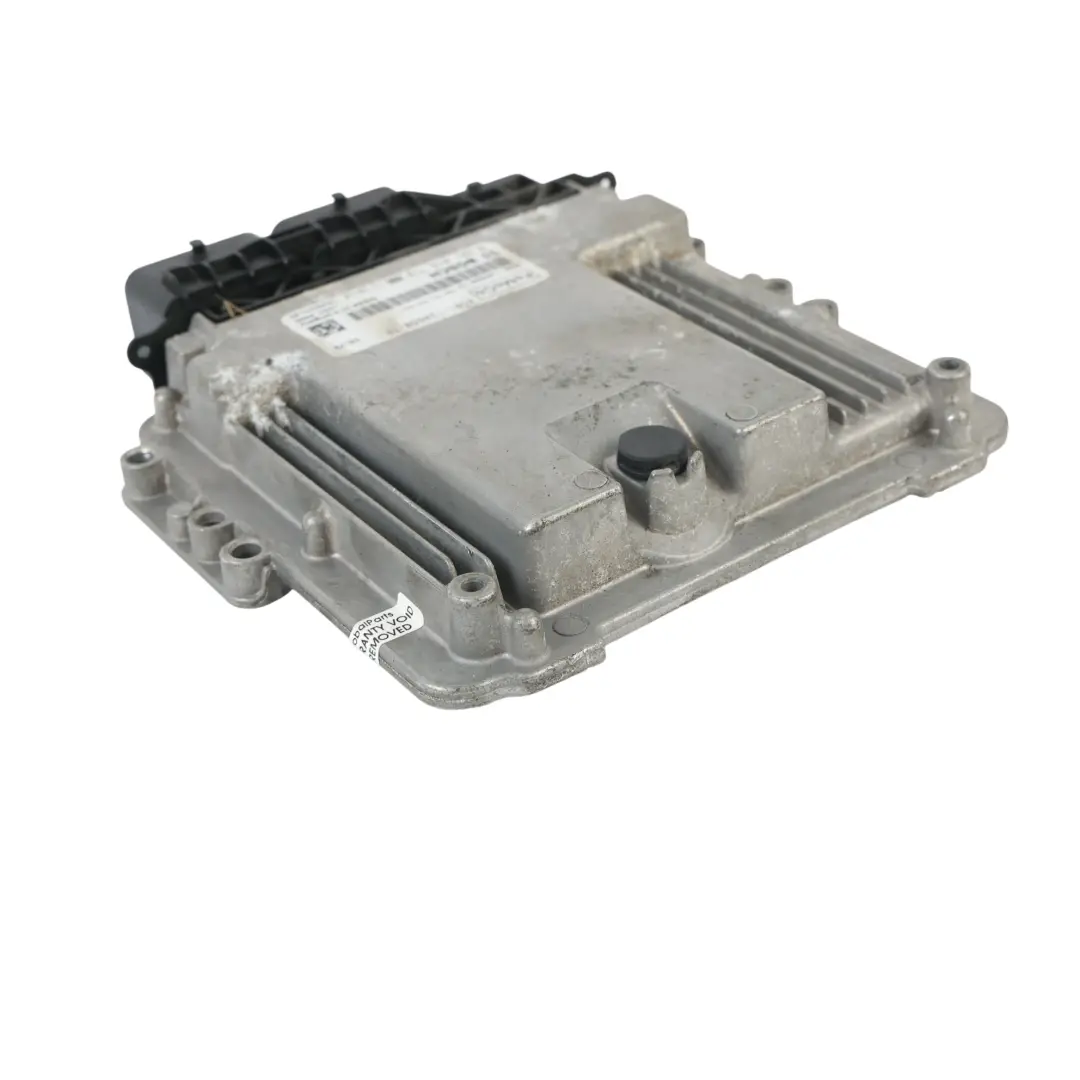

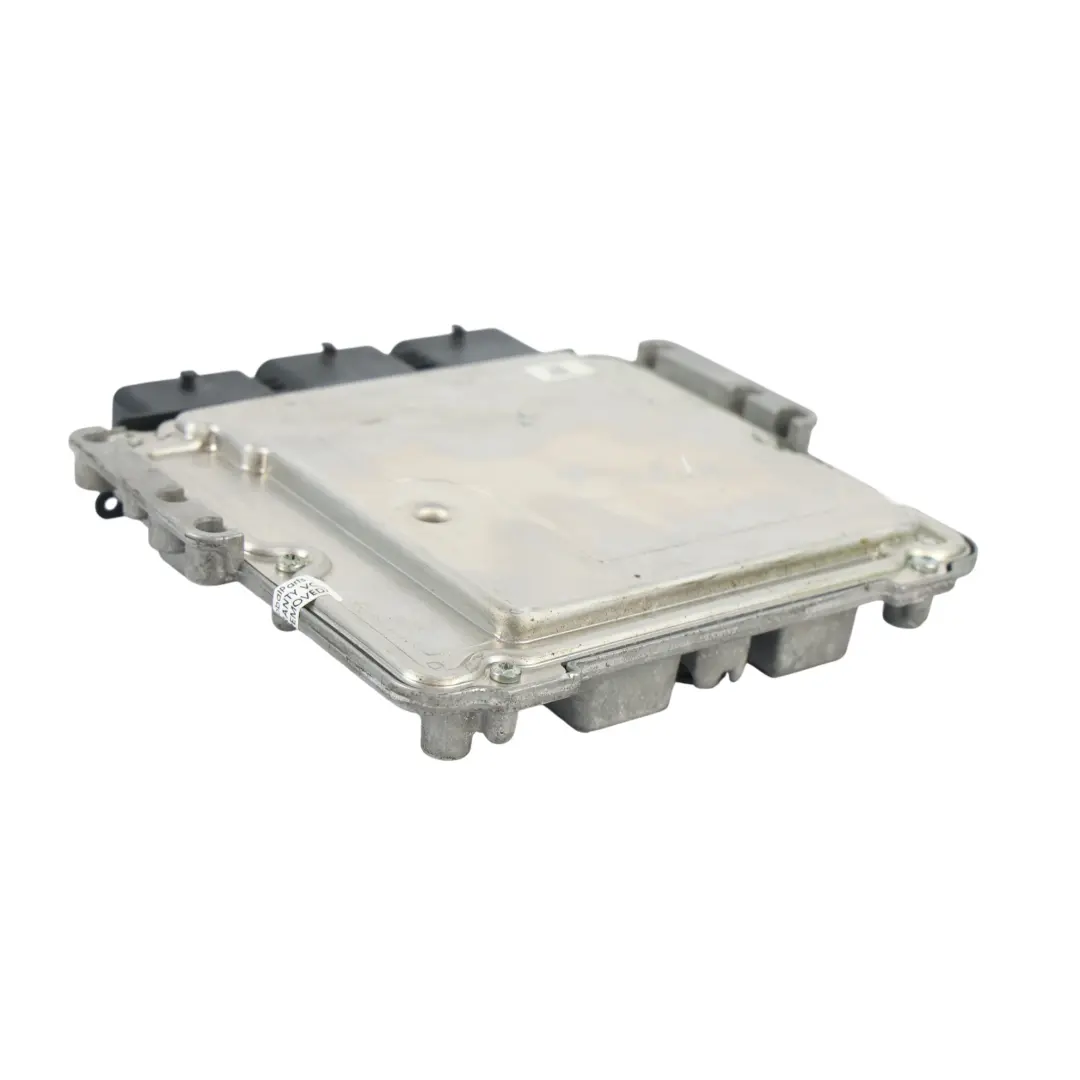

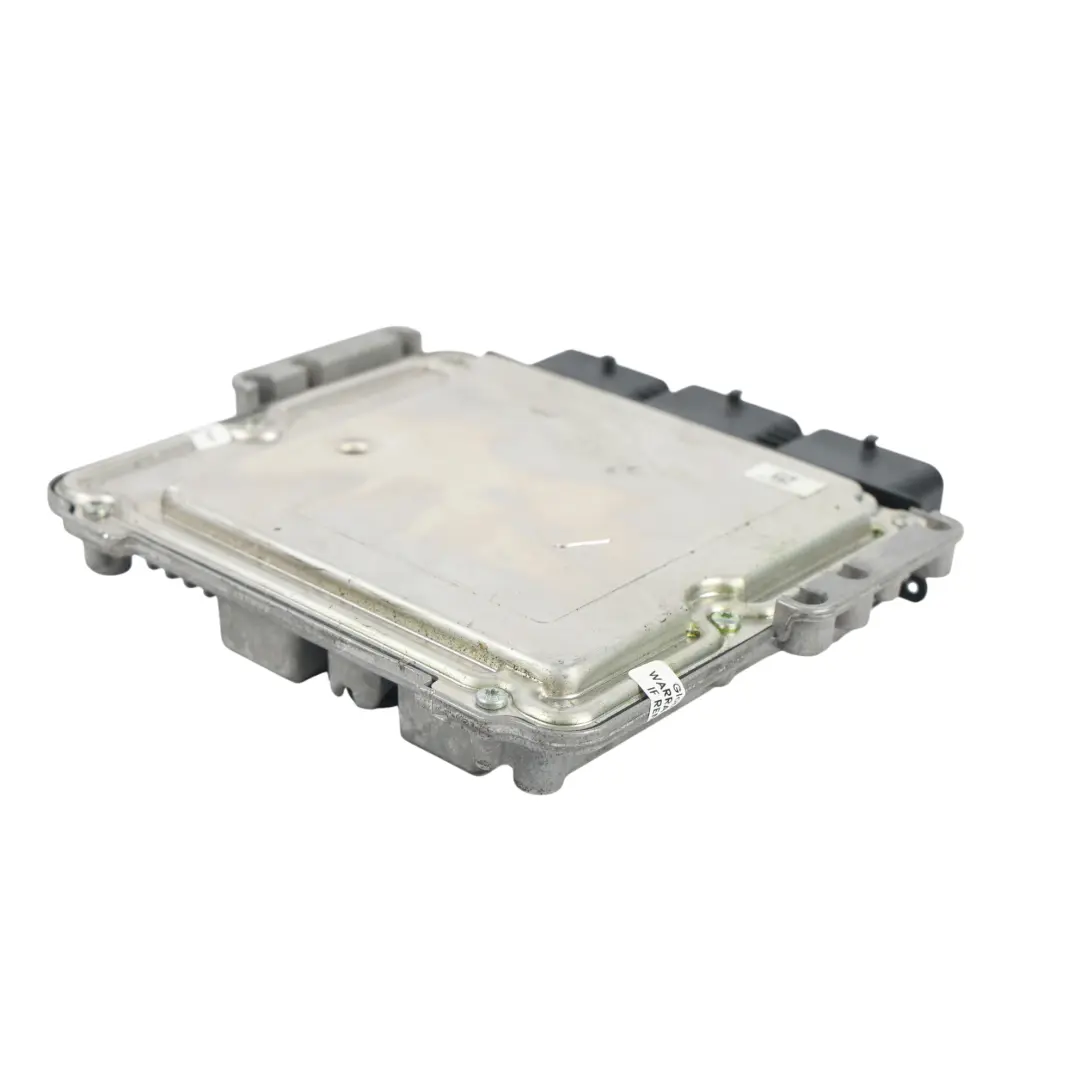

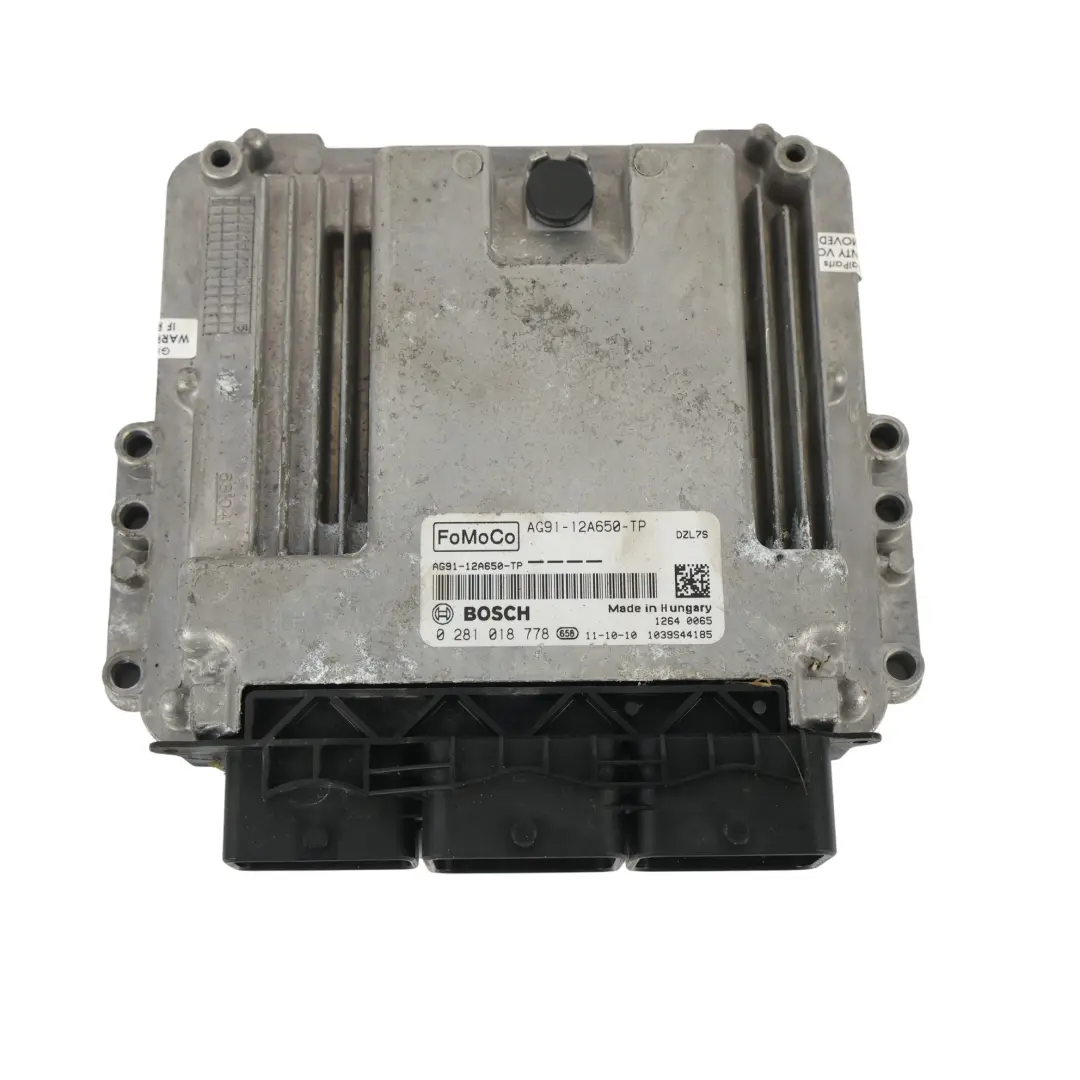

Ford Mondeo Mk4 2.2 TDCI KNBA 200HP Engine Control ECU AG91-12A650-TP Manual

Ford Mondeo Mk4 2.2 TDCI KNBA 200HP Engine Control ECU is a factory electronic control module designed for the 200 HP diesel unit, compatible with a manual transmission. This component from the Electronic control modules and ECUs category is responsible for the precise management of the diesel engine, ensuring stable power characteristics and proper cooperation with auxiliary equipment. Thanks to the original ECU design, you maintain the factory operating parameters of the powertrain and compatibility with the vehicle's electrical system.

Specifications and technical data

• SKU: AG91-12A650-TP
• Mark: Ford
• Condition: Used
• OEM Part Number: AG91-12A650-TP
• Substitutable numbers: 1760687, AU7112A650UB, AU71-12A650-UB, AG91-12A650-TP, AG9112A650TP, 0281018778, 0 281 018 778
• Fuel type: Diesel
• Gearbox type: Manual
• Category: ECUs & Computer Modules

Purpose and function of the ECU

The presented engine control unit is dedicated to the diesel powertrain in the fourth-generation Ford Mondeo, in the 2.2 TDCI version with an increased power of 200 HP, marked as KNBA. The module manages key engine operating parameters, such as fuel dosage, boost pressure, and auxiliary equipment control, which translates into predictable throttle response and proper engine refinement.

The ECU works with a manual transmission, which is significant for torque control logic, fuel cut-off, and interaction with onboard systems. Using the correct controller for a specific drivetrain configuration minimizes the risk of communication errors in the vehicle network and facilitates the adaptation process during installation.

Benefits of using an original module

Using an original electronic control module in a diesel system ensures:

• preservation of factory power and torque characteristics,
• proper cooperation with safety and comfort systems,
• software consistency with the vehicle's equipment configuration,
• reduction of diagnostic error issues after replacement.

Additionally, the controller has an assigned OEM part number and corresponding interchangeable numbers, which facilitates selection for a specific Mondeo Mk4 variant and allows for verifying compatibility with the existing electrical installation and engine wiring harness.

Technical characteristics in the context of the powertrain

The module has been designed to work with a diesel engine, so its control map and operating algorithms are optimized for the characteristics of the TDCI unit. Properly selected injection, fuel pressure, and boost control strategies allow for maintaining stable operating parameters both in urban conditions and under highway loads.

The version intended for a manual transmission takes into account the specifics of manual gear shifting, including the reaction to sudden throttle release and application, which is important for driving smoothness and the protection of mechanical components. As a result, the engine control unit supports predictable vehicle behavior across the entire rev range.

Condition, selection, and practical application

This item comes from the group of used components, which allows for an economical repair of the engine control system while maintaining the original specification. Before installation, it is recommended to verify the compatibility of the part number and interchangeable numbers with the currently installed module, as well as to prepare for potential adaptation or programming in accordance with Ford service procedures.

In practice, such a controller is chosen in the event of a failure of the current ECU, communication problems in the vehicle network, or the need to restore factory settings after unsuccessful software modifications. A properly selected module allows for restoring stable diesel engine operation and reducing vehicle downtime.
