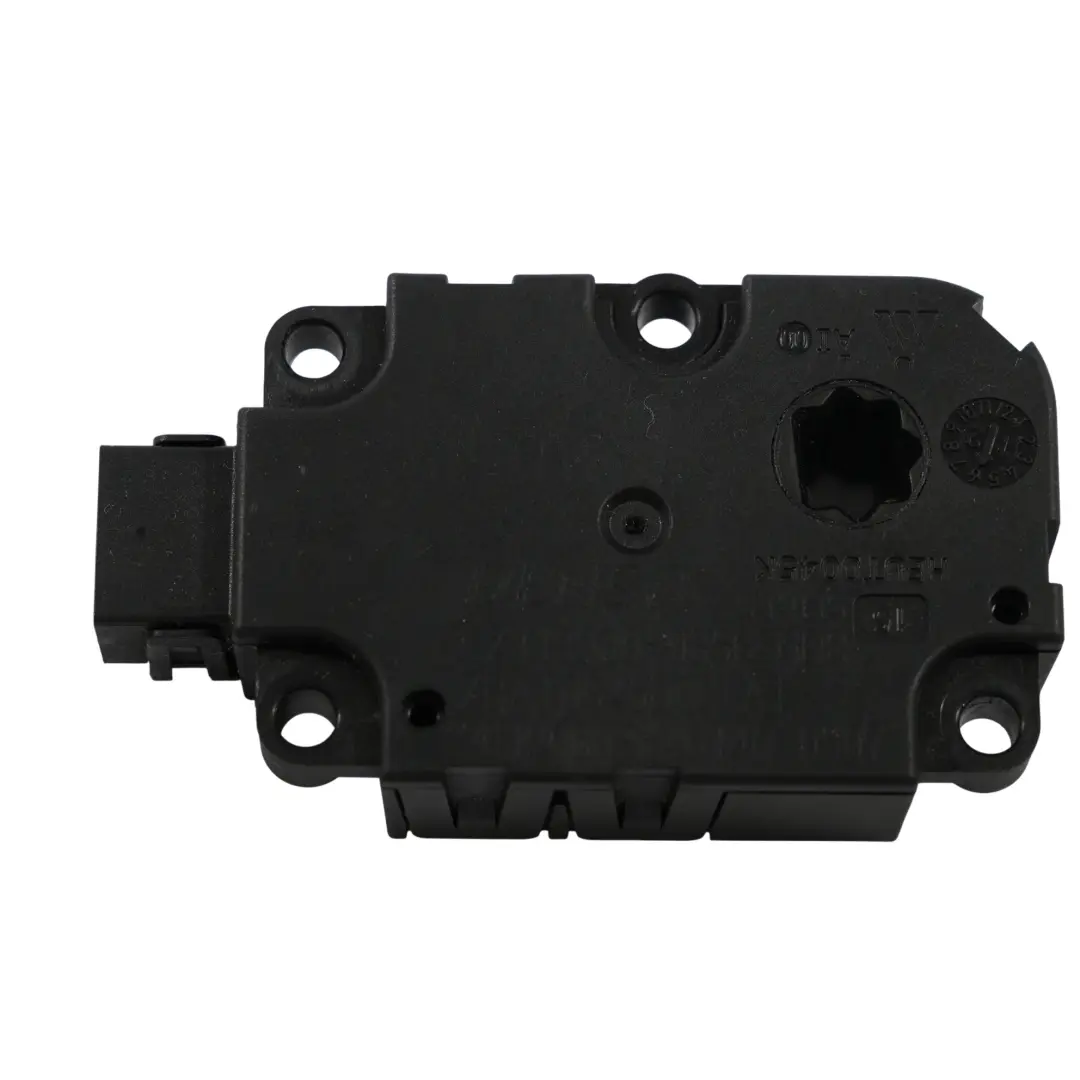

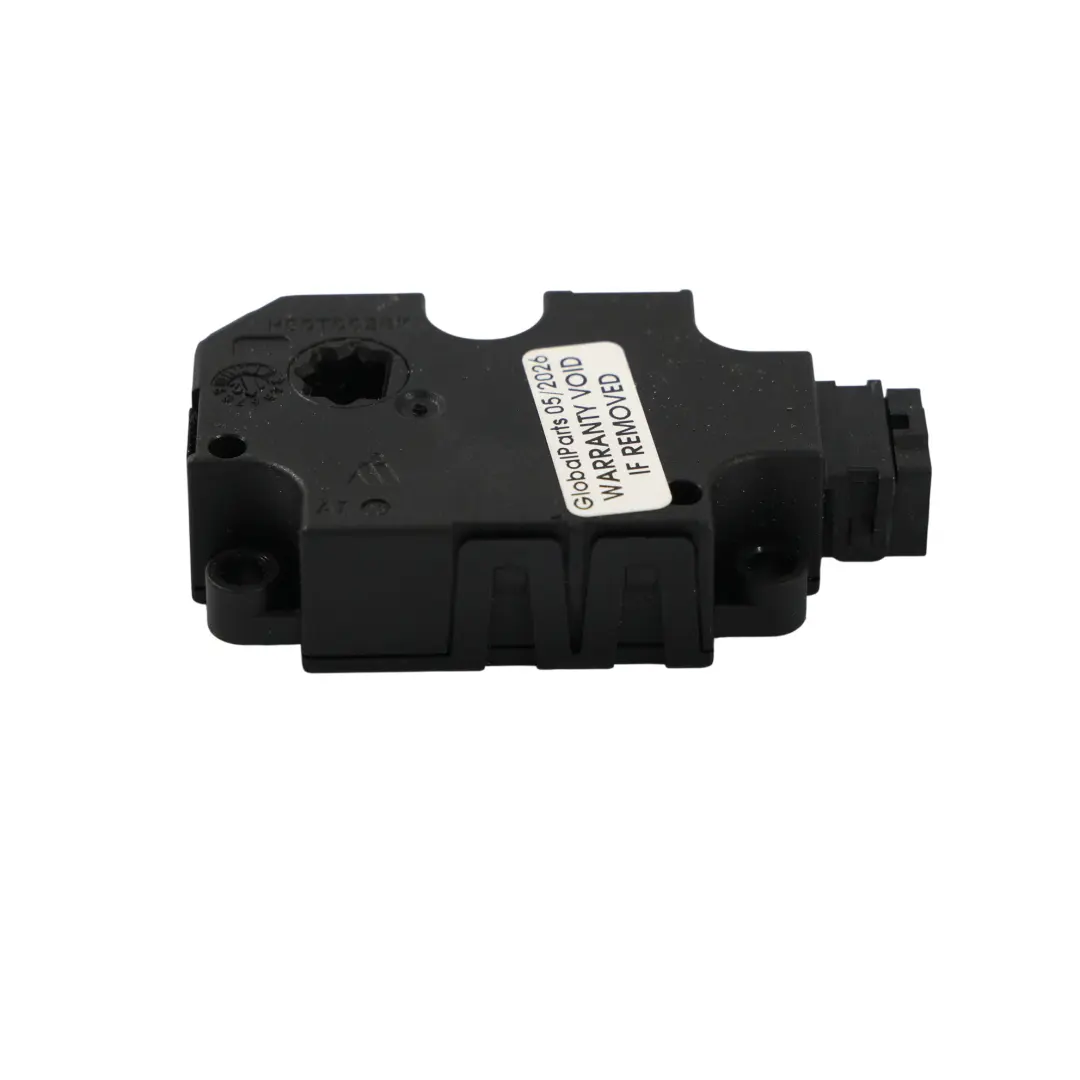

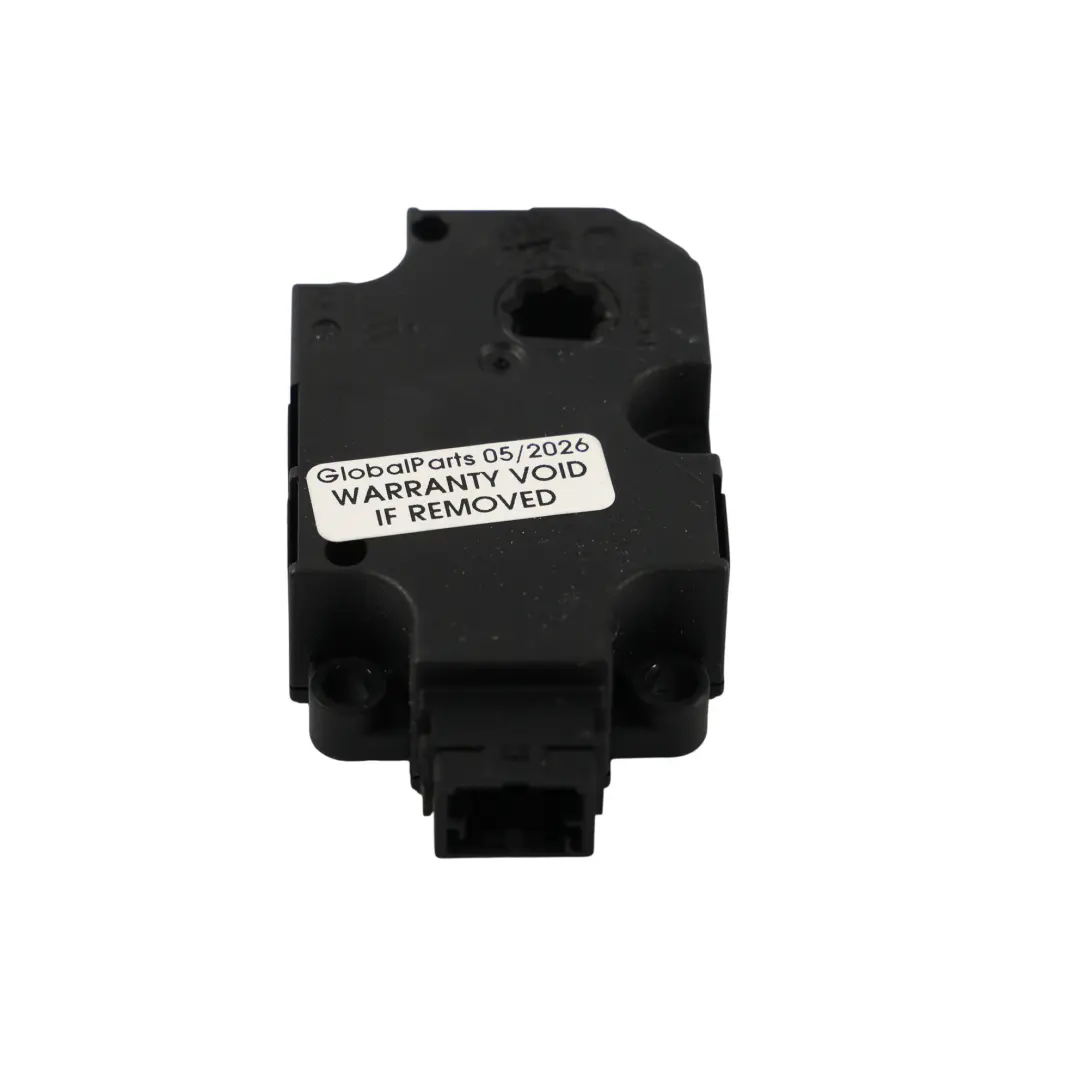

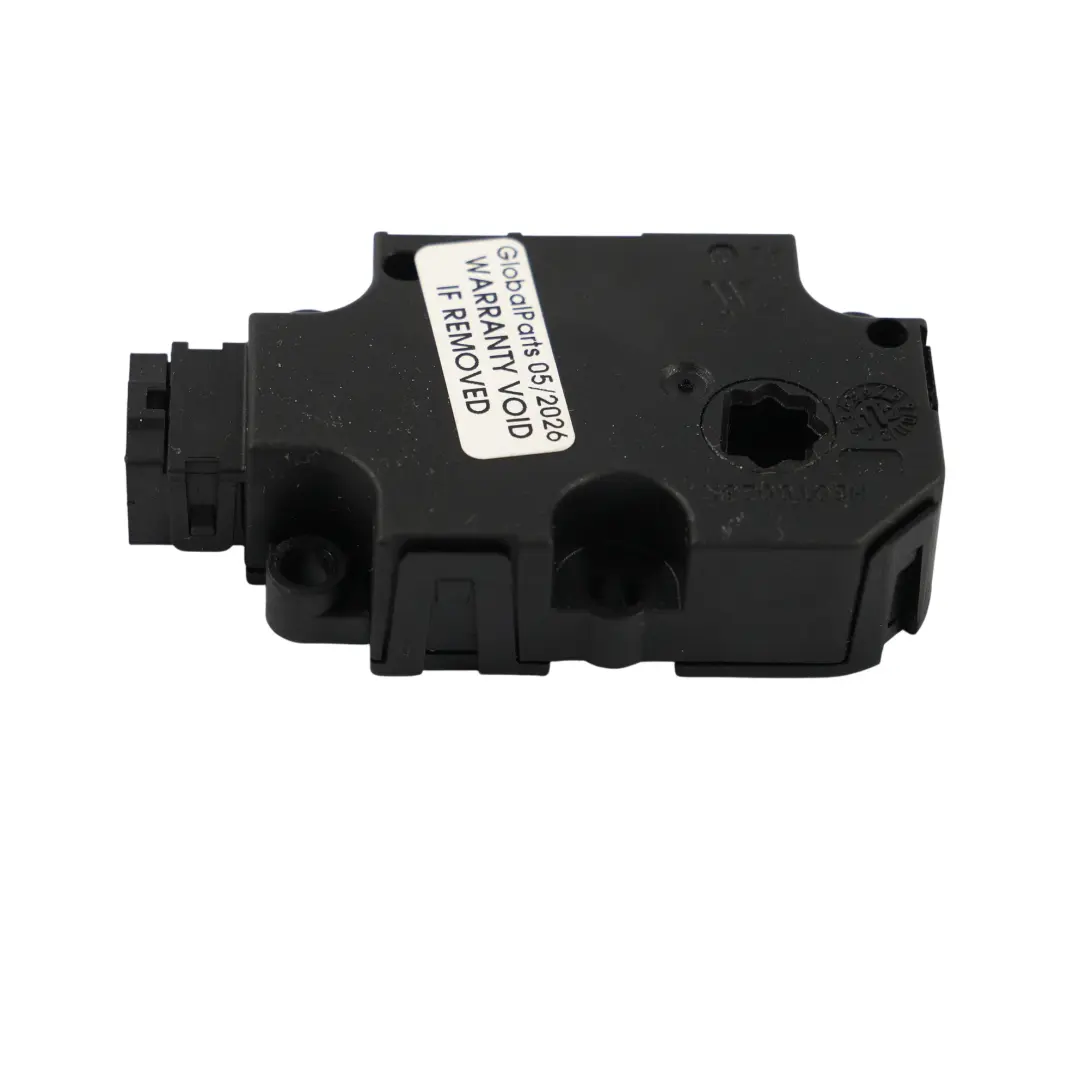

Audi A6 C7 Air Conditioning Climate Control Flap Positioning Motor 4H0820511E

Audi A6 C7 Air Conditioning Climate Control Flap Positioning Motor is an original component from the Heating control valves group, designed for precise control of flaps in the air conditioning and ventilation system. It enables accurate positioning of mixing and air distribution flaps, which translates into stable thermal conditions in the cabin and comfortable operation of the entire HVAC system in your Audi.

Specifications and technical data

• SKU: 4H0820511E-1
• Mark: Audi
• Condition: Used
• OEM Part Number: 4H0820511E
• Substitutable numbers: 4H0820511E, 4H0 820 511 E
• Category: Heater Control Valve

Function and application in the Audi A6 C7 air conditioning system

The air conditioning flap positioning motor is responsible for the electrical control of ventilation and air mixing flaps in the heating and cooling system. In practice, this means that the climate control module can smoothly regulate:

• air direction (windshield, dashboard, footwell),
• warm and cold air proportions,
• air distribution between the driver and passenger sides.

Thanks to this component, the system reacts to climate control panel settings, maintaining the set temperature and airflow parameters in the Audi A6 C7 in a repeatable and predictable manner.

Construction and technical characteristics

The air conditioning flap positioning motor is a compact electric actuator integrated with a gearbox and a position sensor. This design allows for:

• precise mapping of the flap position in the climate control unit,
• smooth movement without jerking,
• stable operation under typical vehicle interior temperature conditions.

As an original Audi component from the Heating control valves group, the motor is designed for a proper fit with the heater housing and air ducts in the A6 C7 model, which facilitates installation and ensures correct cooperation with the factory control system.

Benefits of using an original positioning motor

Using the correct air conditioning flap positioning motor in the Audi A6 C7 allows you to restore the proper operation of the heating and cooling system, especially in situations where symptoms occur such as:

• no reaction to changes in temperature or airflow direction,
• uneven heating of the left and right sides of the cabin,
• characteristic clicking or rattling sounds from the dashboard area when changing climate control settings.

Choosing an original element from the same functional group allows you to maintain consistency of HVAC system operating parameters, reduce the risk of diagnostic errors, and facilitates any potential future servicing.

Condition, origin, and installation aspects

The offered air conditioning flap positioning motor comes from dismantling and is a used part, which represents a reasonable compromise between repair costs and maintaining the original Audi part specification. Such components, when properly selected and installed, allow for effectively solving airflow regulation problems without the need to invest in a new subassembly.

Replacing the motor requires access to the heater module and air ducts, therefore installation in a specialized service center or by a person with experience in working with air conditioning systems is recommended. A correctly installed element works with the factory controller, enabling the restoration of full functionality of the heating and cooling system.

Expansion of the Audi heating and air conditioning system

If you are planning a comprehensive repair or upgrade of the heating and air conditioning zone in your Audi and need other elements from the same group, such as additional flap actuators, control elements, or related regulation modules, check the available parts in the Audi heating control valves category.
