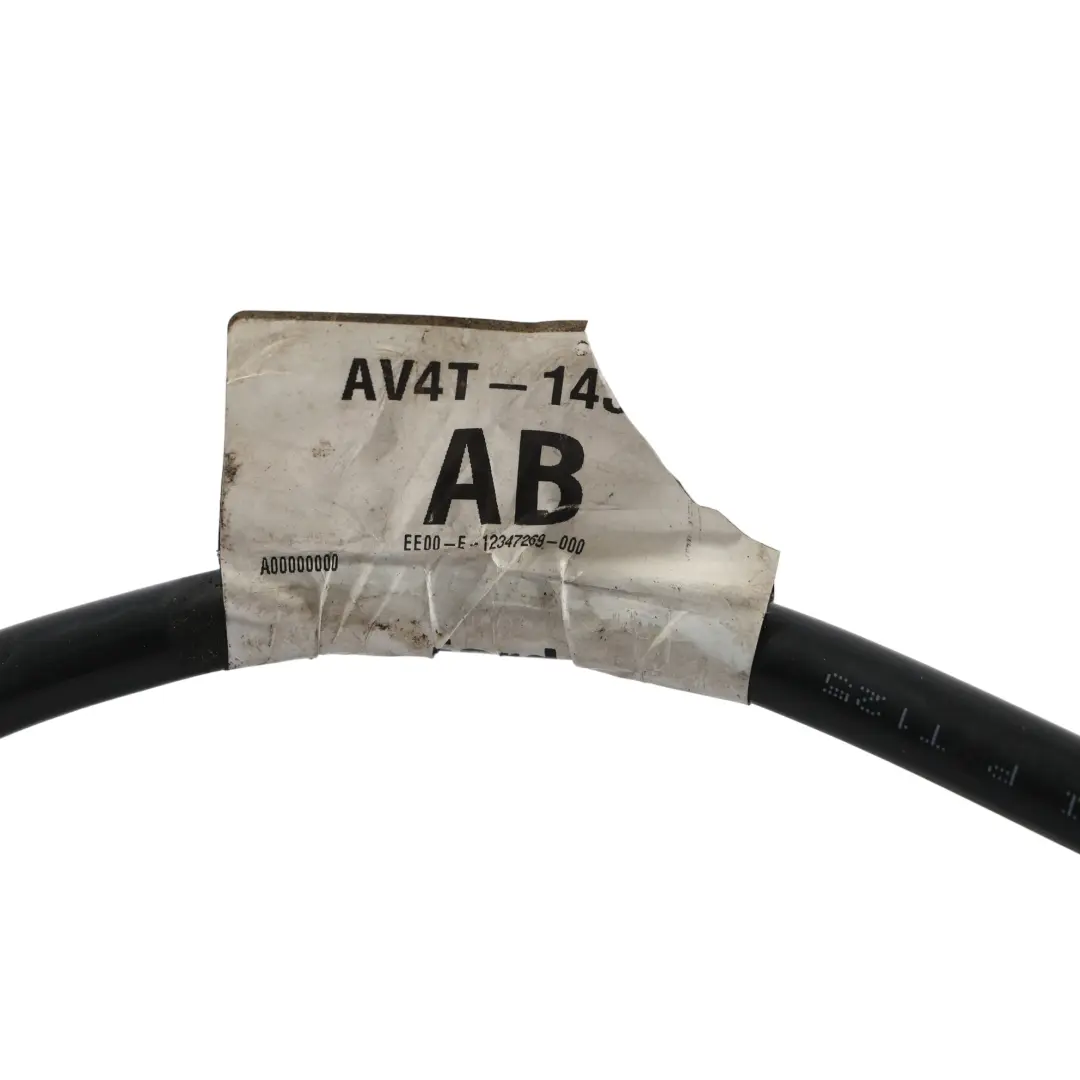

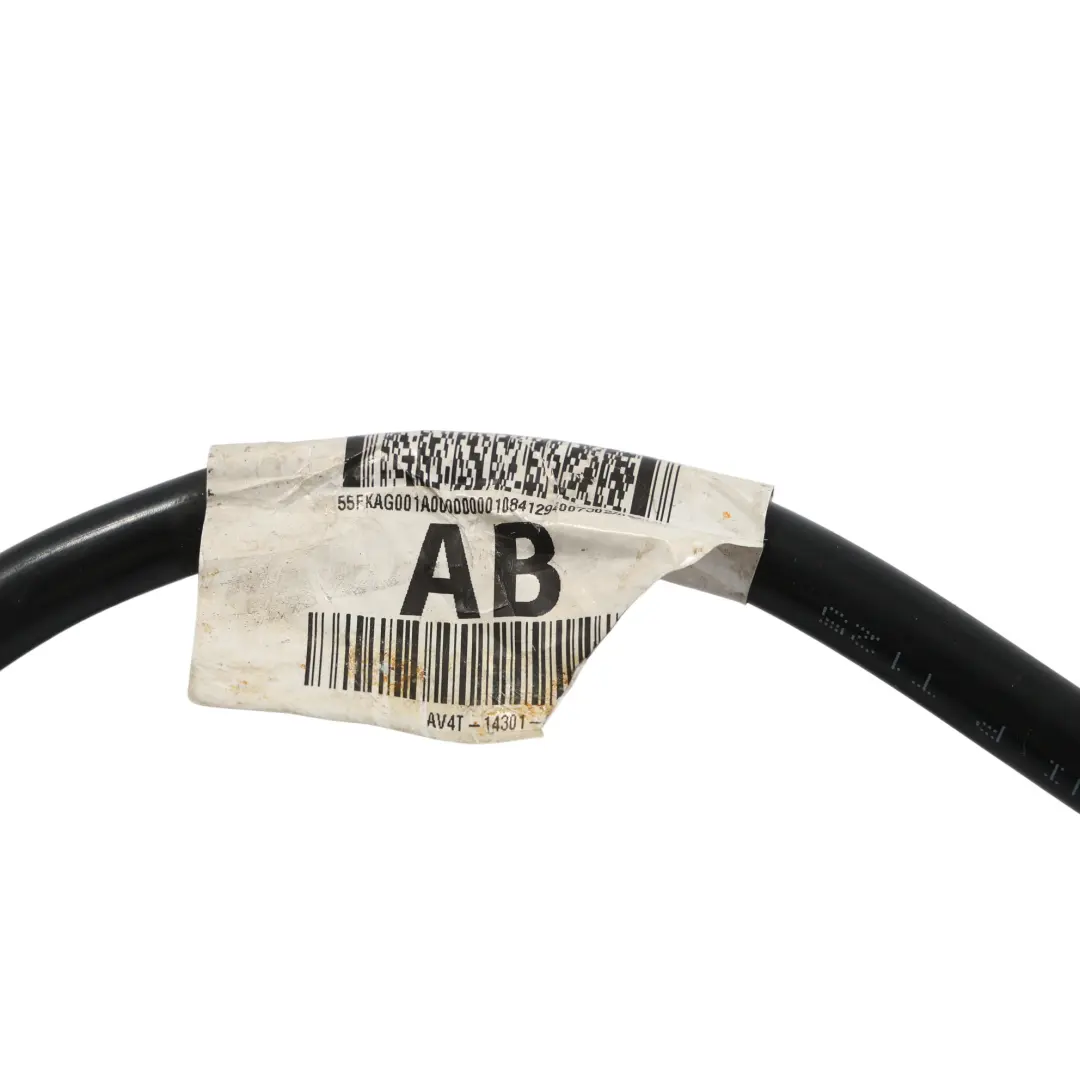

Ford Kuga C394 Negative Battery Wiring Loom Cable Wire Harness AV4T-14301-AB

Ford Kuga C394 Negative Battery Wiring Loom Cable Wire Harness is a specialized component from the Cables, wiring looms and connectors group, designed for the power supply system in diesel-powered vehicles. It is responsible for a secure, low-resistance connection between the negative battery terminal and the electrical system, which is crucial for the stable operation of all onboard systems.

Specifications and technical data

• SKU: AV4T-14301-AB
• Mark: Ford
• Condition: Used
• OEM Part Number: AV4T-14301-AB
• Substitutable numbers: AV4T-14301-AB, AV4T14301AB, 1737499
• Fuel type: Diesel
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the electrical system

The negative battery wiring loom in the Ford Kuga C394 is responsible for safely conducting current from the negative terminal to the chassis and main ground points. In diesel vehicles, a stable ground connection is particularly important due to the high loads on the starter motor and the extensive control electronics.

A properly selected wiring loom minimizes voltage drops, reduces the risk of starting issues and interference in controller operation, and supports the correct functioning of safety and comfort systems. Using a dedicated ground cable for a specific Ford model ensures proper cable routing, mounting points, and wire cross-sections in accordance with the manufacturer's specifications.

Benefits of using an original Ford wiring loom

Choosing the negative battery wiring loom designed for the Ford Kuga C394 provides a number of practical advantages in the daily operation of a diesel vehicle:

• preservation of factory cable routing geometry and ground points,
• properly selected cable cross-sections and lengths for diesel systems,
• compatibility with original connectors and mounting points,
• reduced risk of ground connection overheating,
• stable operating conditions for the starter and engine controllers.

As a result, the starting system operates under more predictable conditions, and the electrical installation is less prone to typical problems resulting from incorrectly selected or makeshift ground cables.

Product characteristics and application in diesel engines

The presented wiring loom belongs to the Cables, wiring looms and connectors group and has been designed with the specifics of diesel units in mind. Diesel engines generate higher current loads during startup, which is why the ground cable must provide low resistance and adequate resistance to thermal and mechanical conditions in the engine bay.

This component is particularly recommended in situations where the vehicle exhibits symptoms such as difficult starting, unstable voltage, sporadic controller errors, or issues with electrical equipment, and diagnostics point to irregularities in the battery ground circuit. Using a dedicated wiring loom allows for restoring correct system operating parameters without the need to modify the installation.

Condition, installation, and practical aspects

The offered Ford negative battery wiring loom comes from the secondary market, making it an economical solution while maintaining compliance with factory specifications. It is a beneficial alternative for users who want to restore the efficiency of the electrical system while controlling repair costs.

Installing the ground cable in a Ford Kuga C394 requires following the correct battery disconnection and connection sequence, as well as thoroughly cleaning the ground points. A properly installed wiring loom ensures a stable connection, reduces the risk of sparking, and improves starting consistency, which is especially important in vehicles operated in varying temperature conditions.
