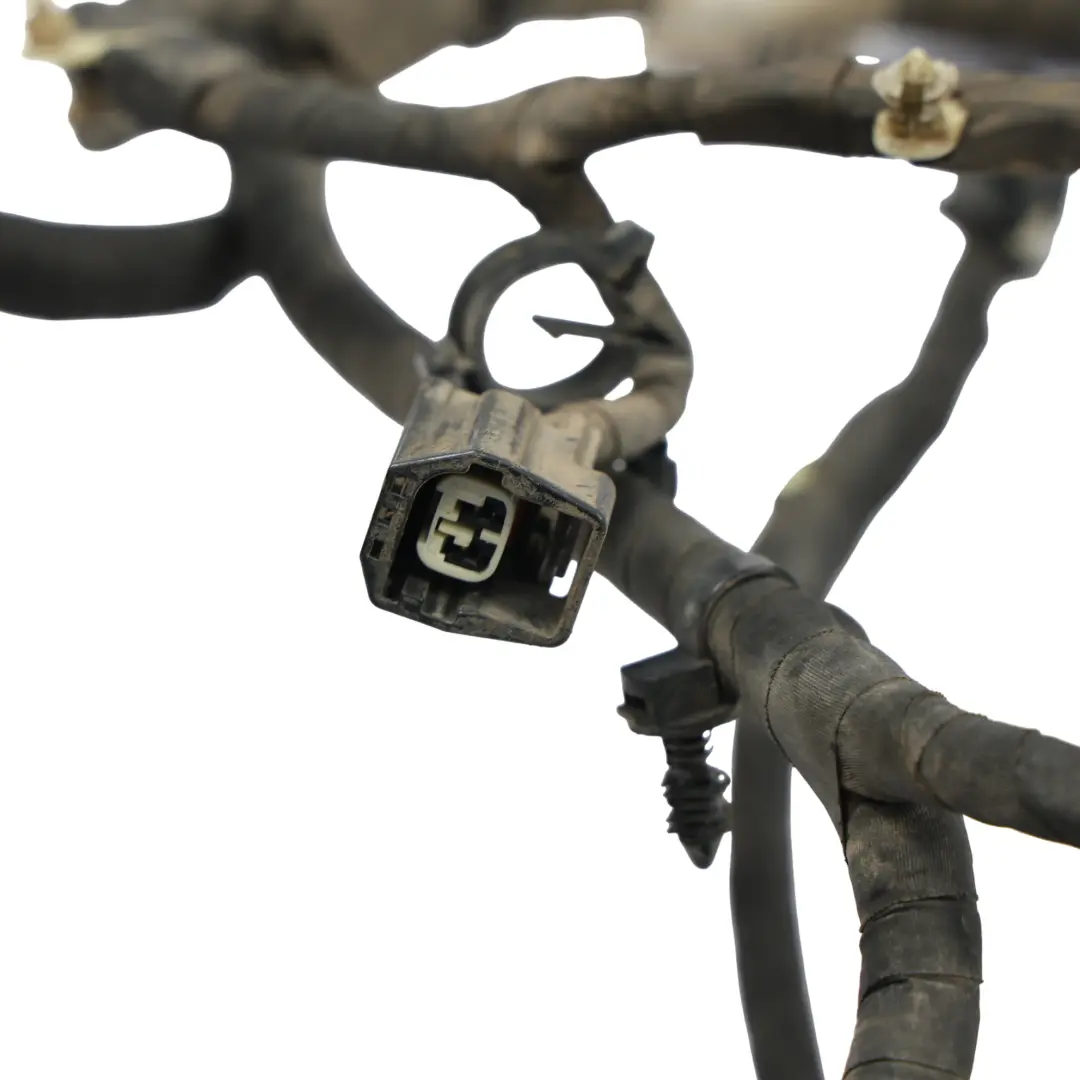

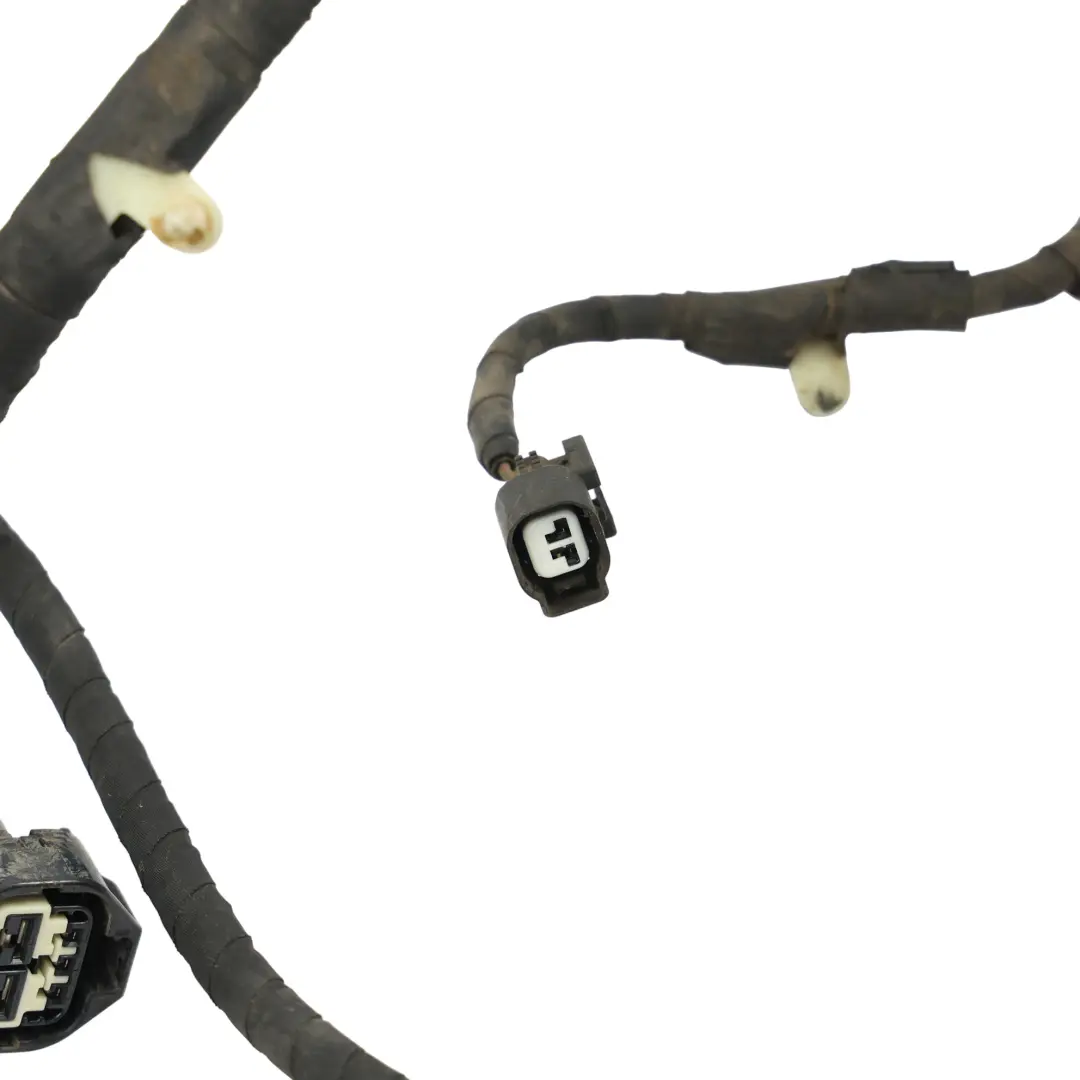

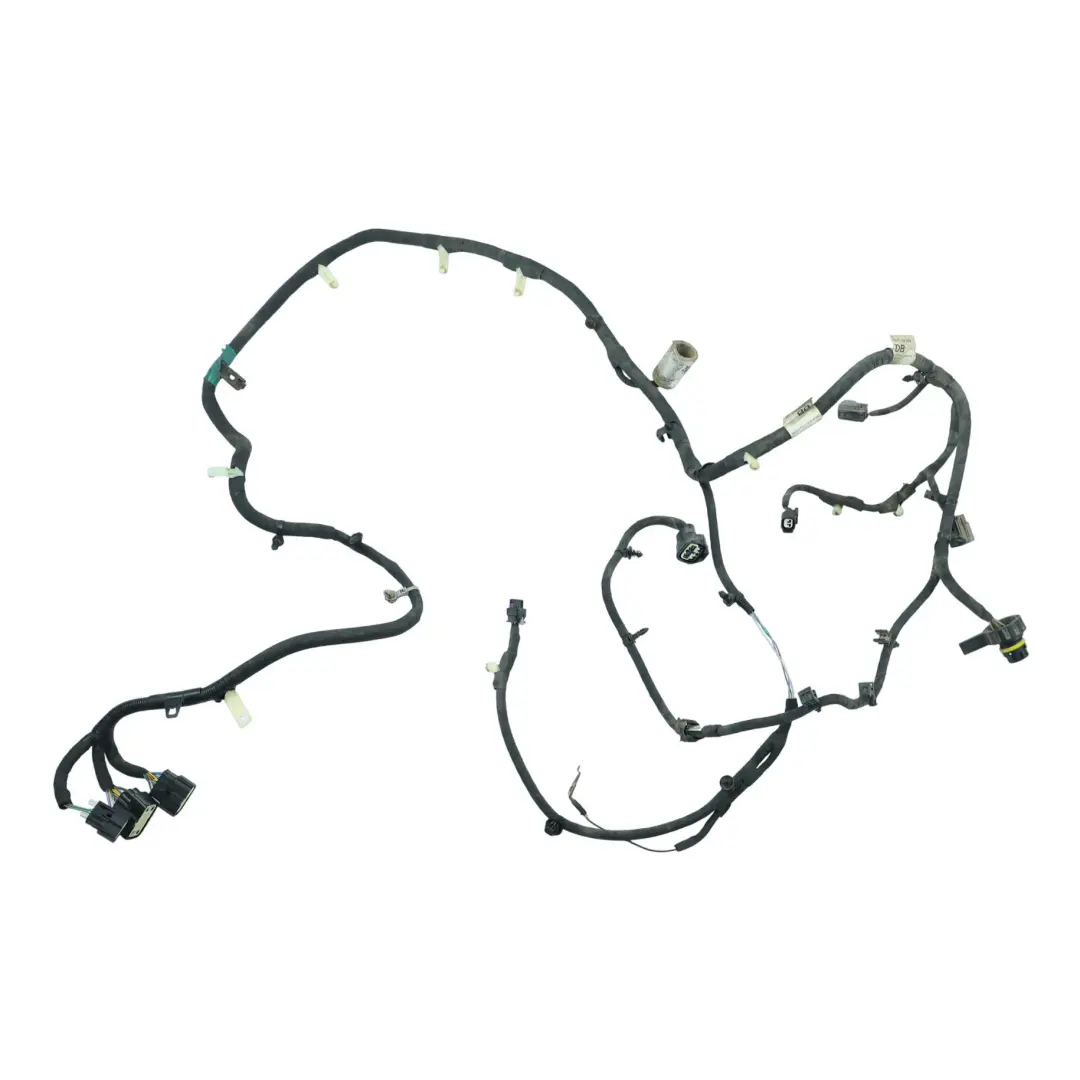

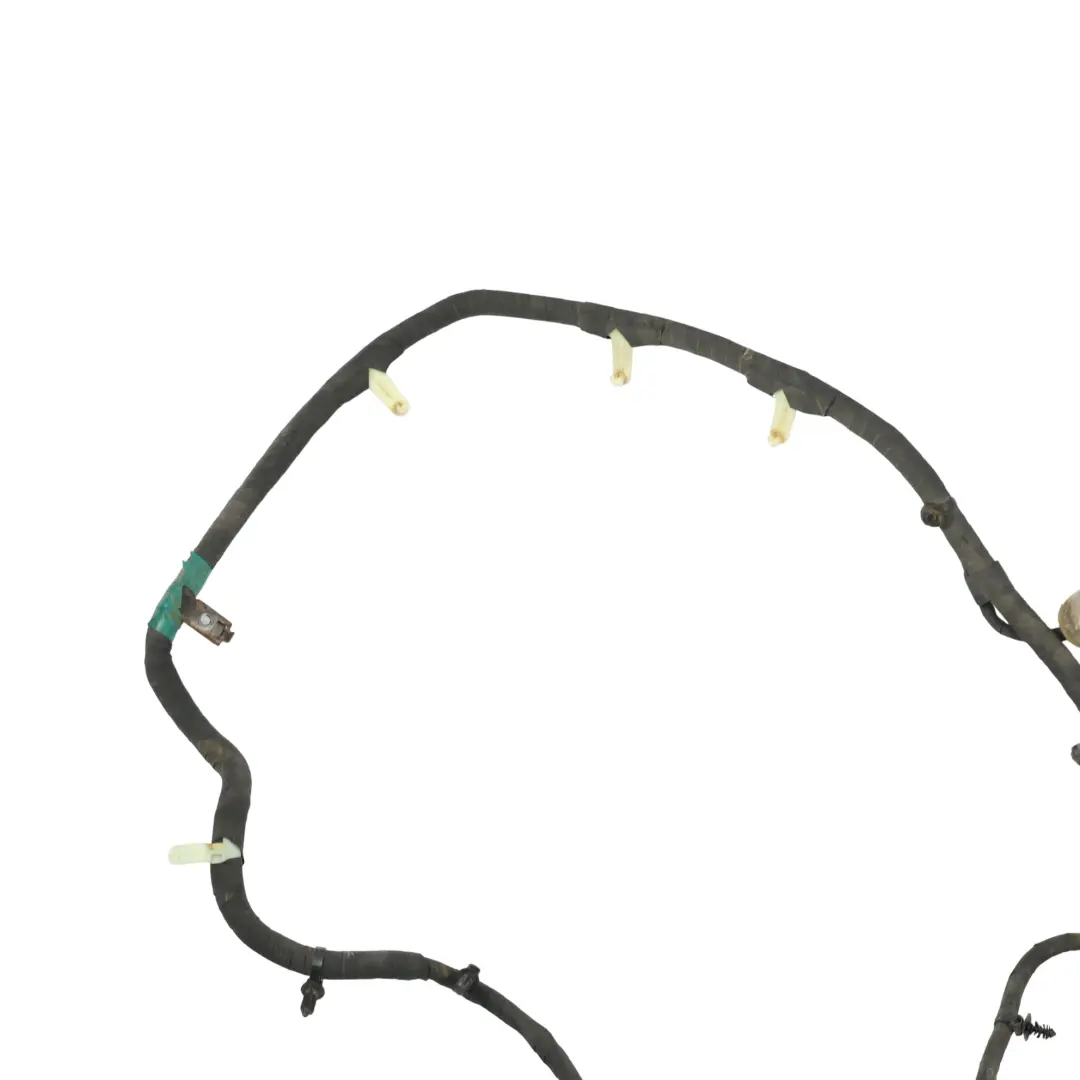

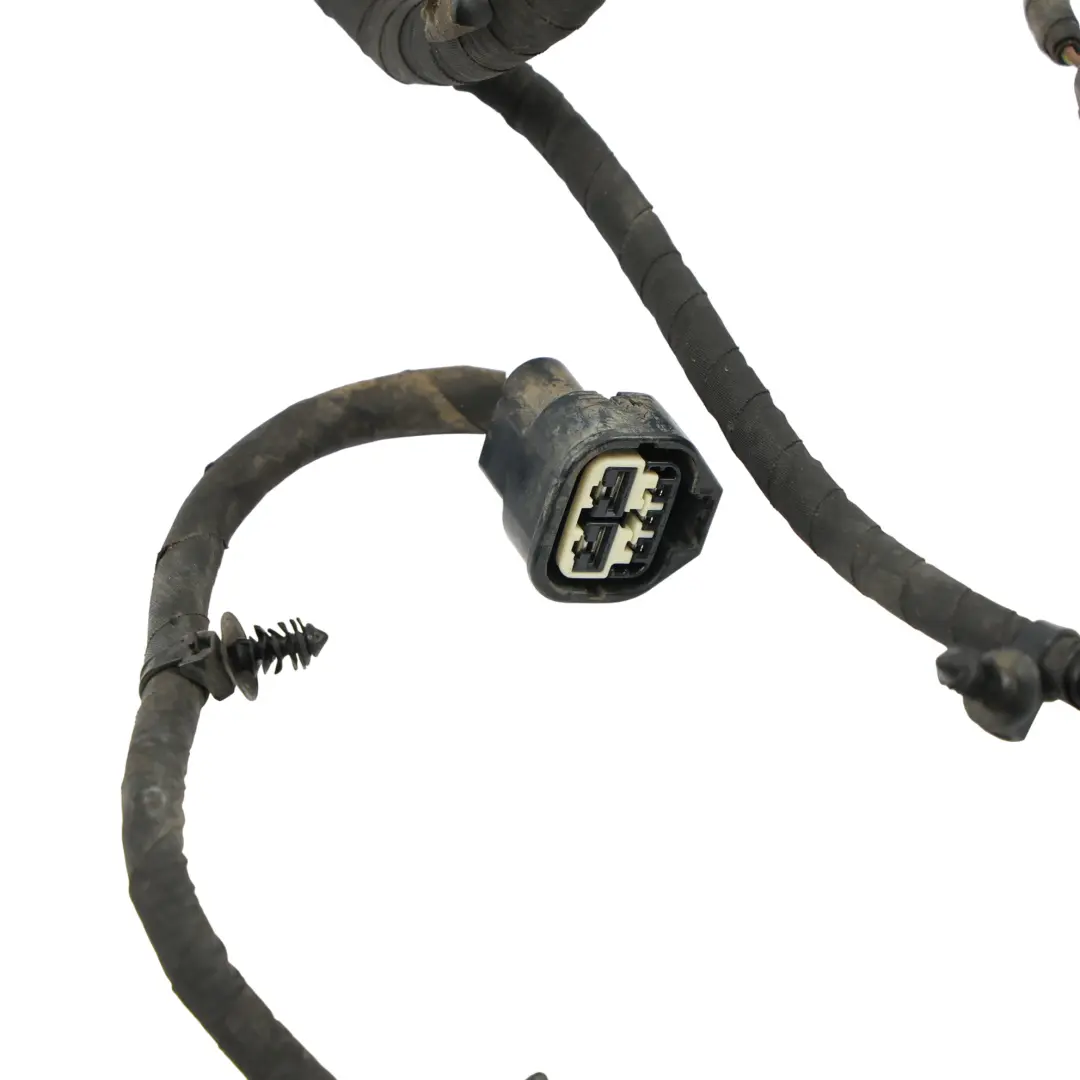

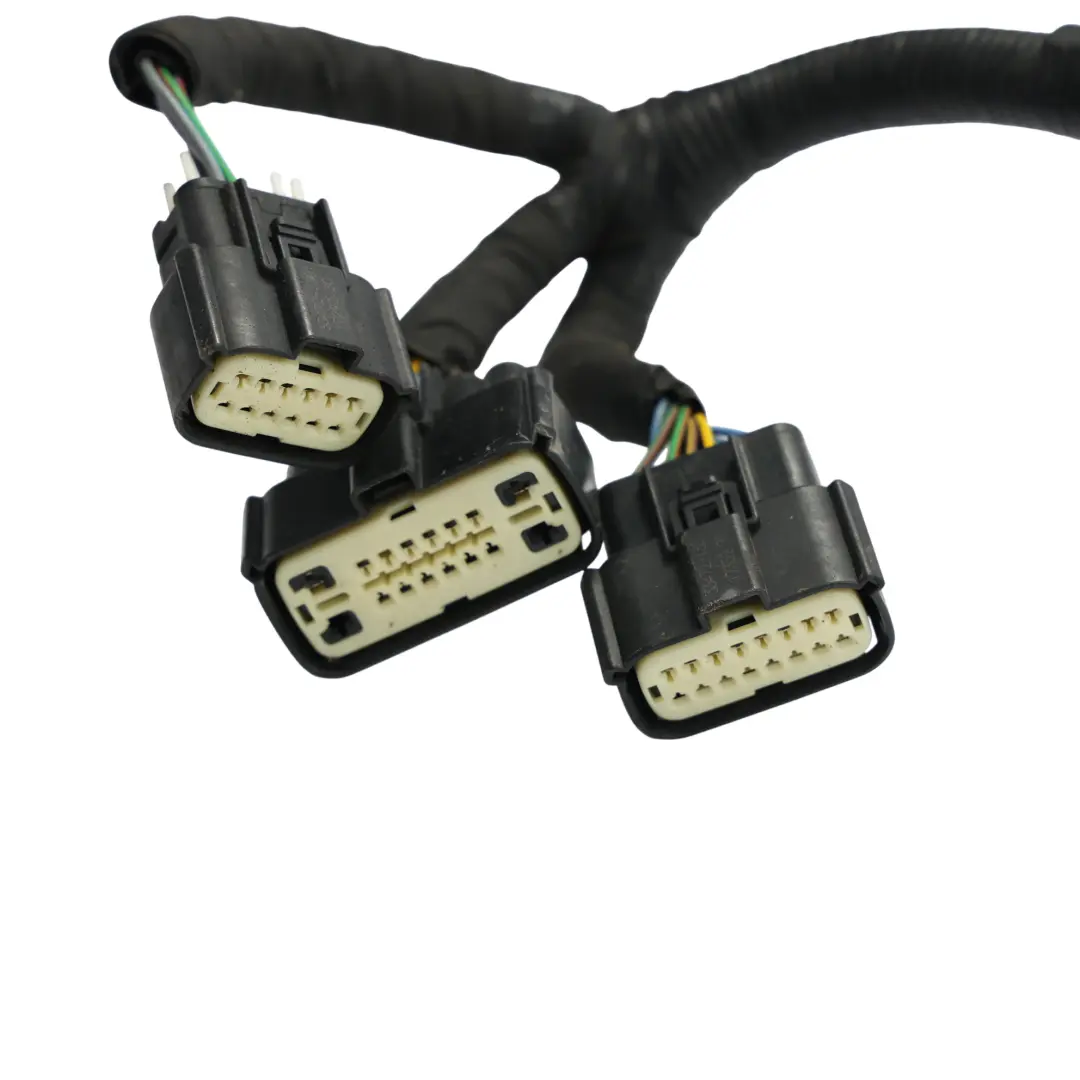

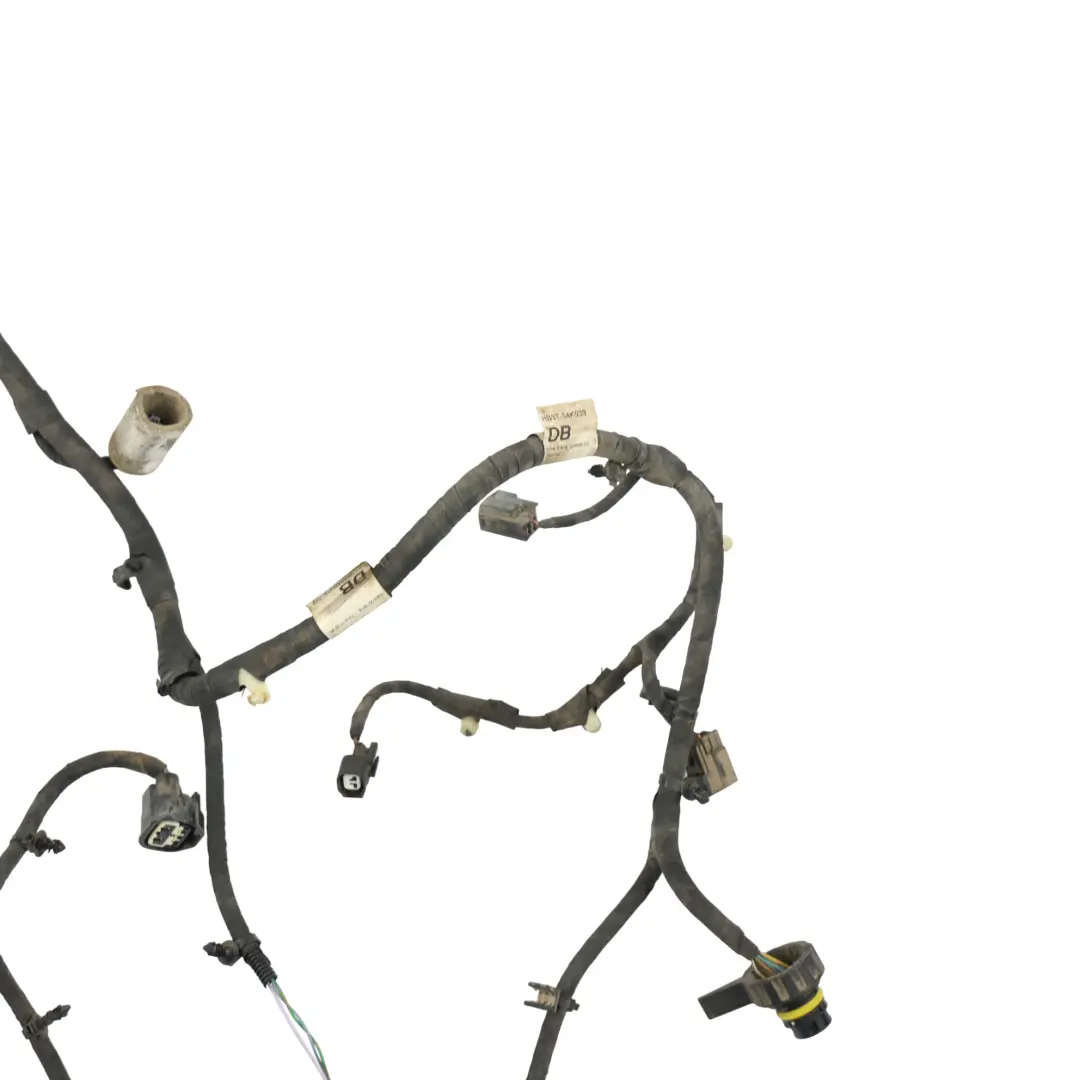

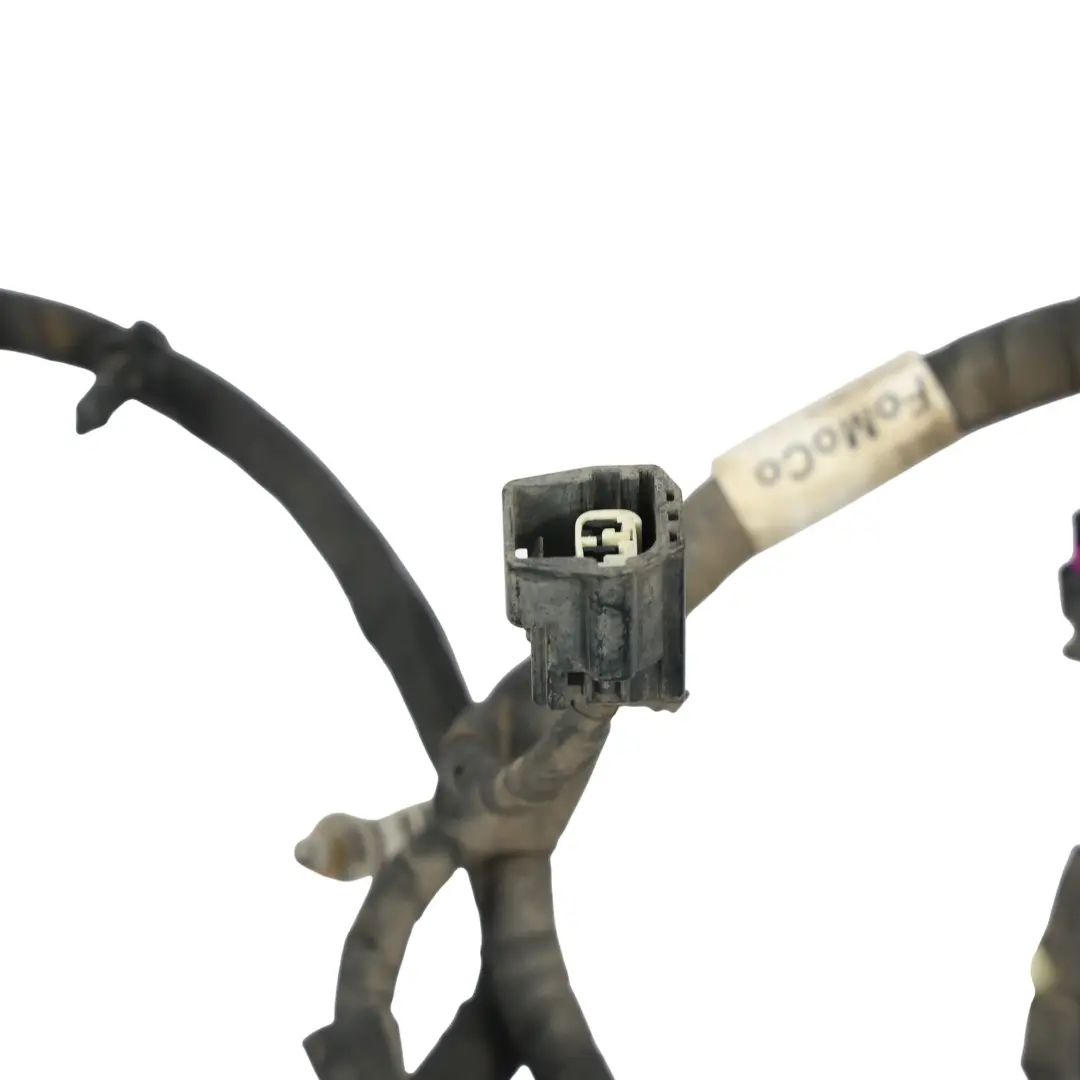

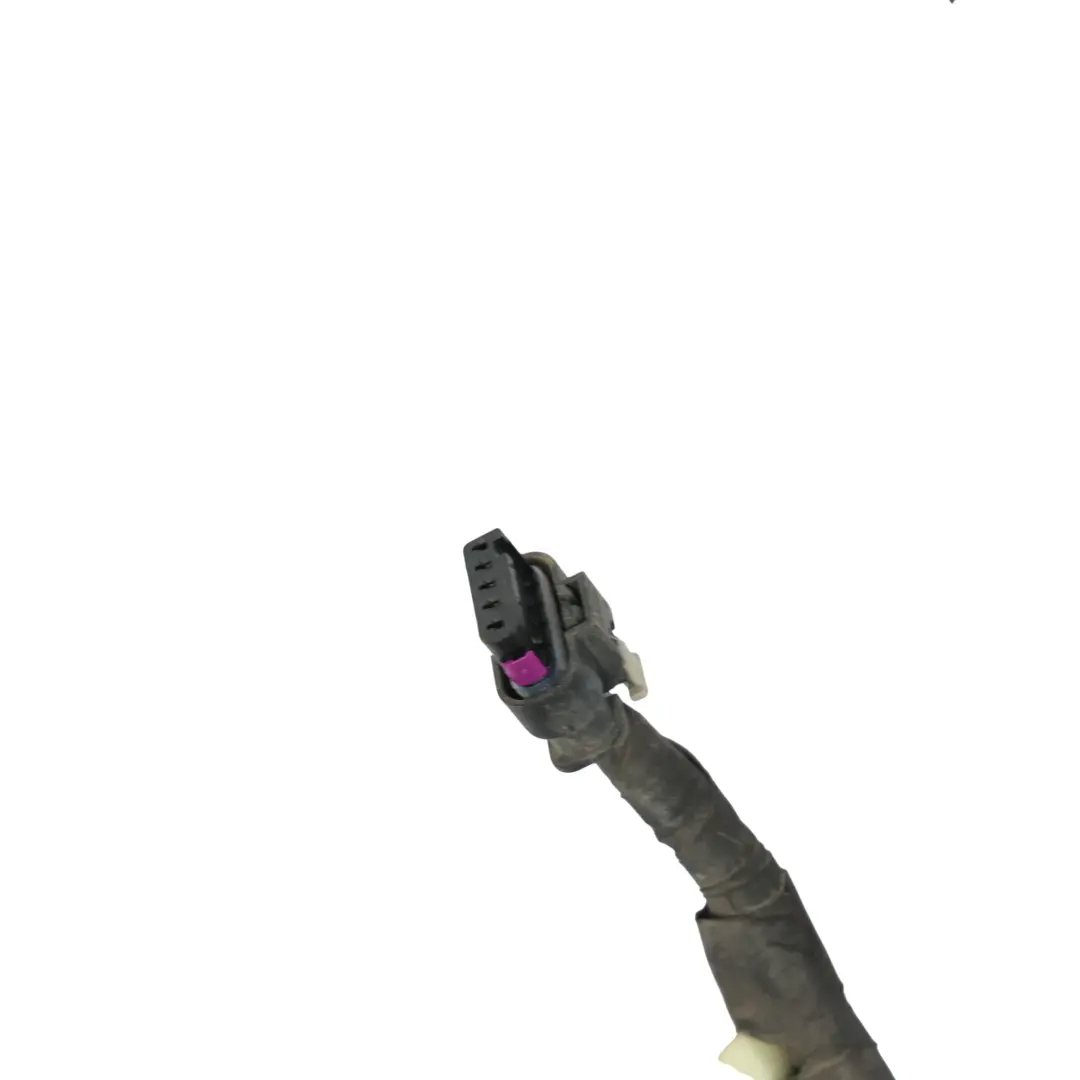

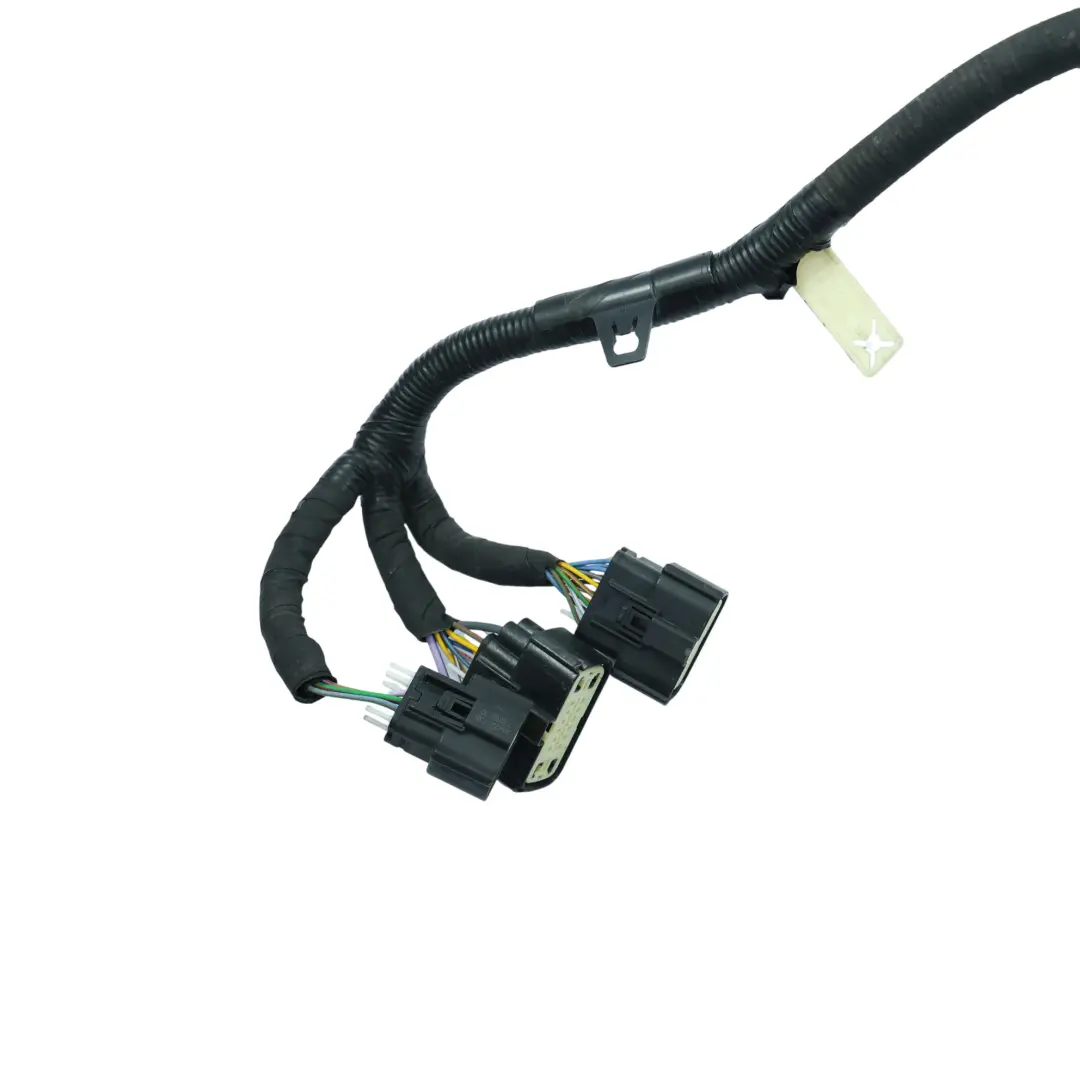

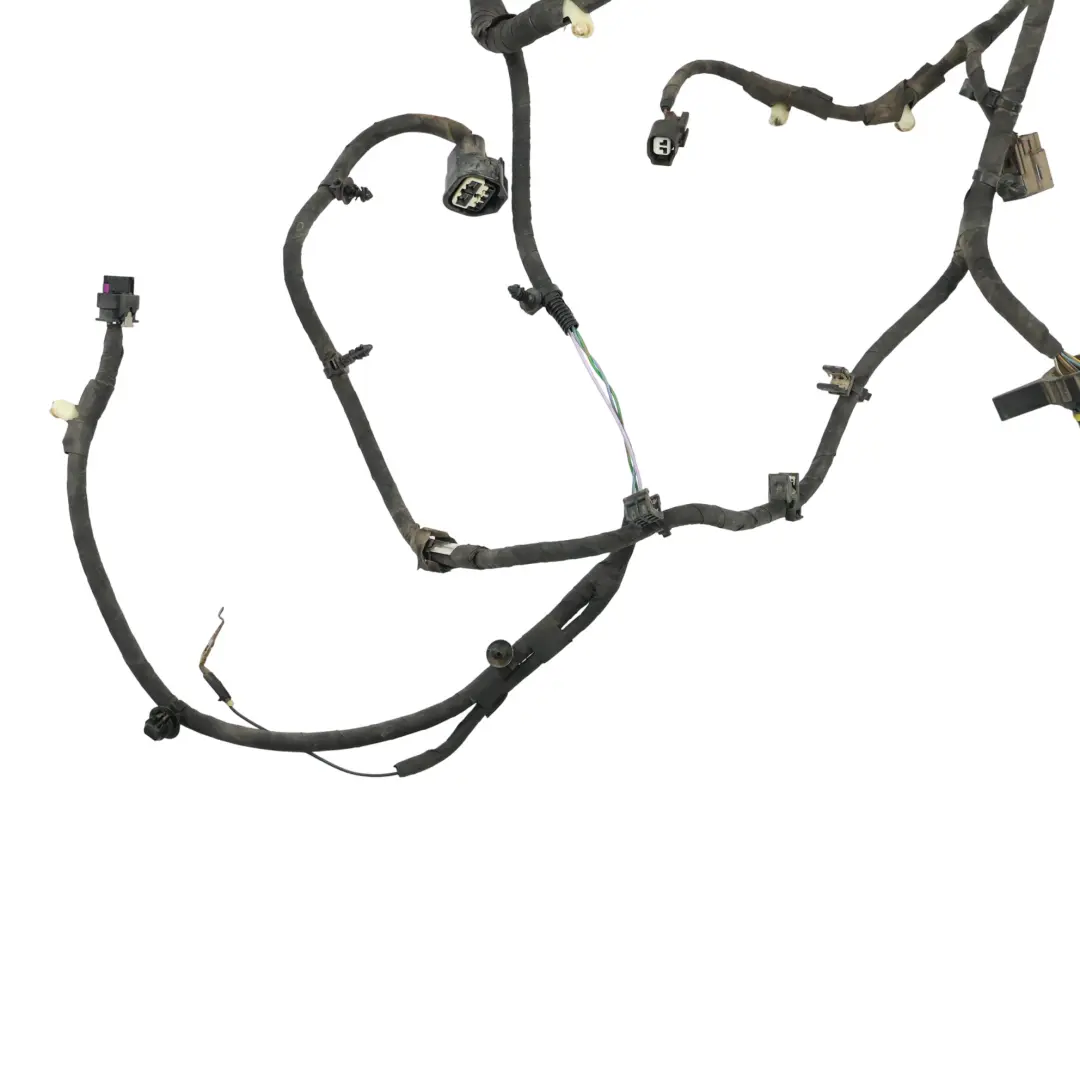

Ford Ranger Mk3 Automatic Gearbox Wiring Loom Harness 2.2 Diesel HB3T-14K039-DB

The Ford Ranger Mk3 Automatic Transmission Wiring Harness 2.2 Diesel is a component from the Cables, Harnesses, and Connectors category, designed for the control system of an automatic transmission in a diesel version. It ensures a stable electrical connection between sensors, actuators, and control modules, guaranteeing proper gearbox operation. This is a practical solution for users seeking a tested, original wiring harness for a vehicle with a diesel engine and an automatic transmission.

Specifications and technical data

• SKU: HB3T-14K039-DB
• Mark: Ford
• Condition: Used

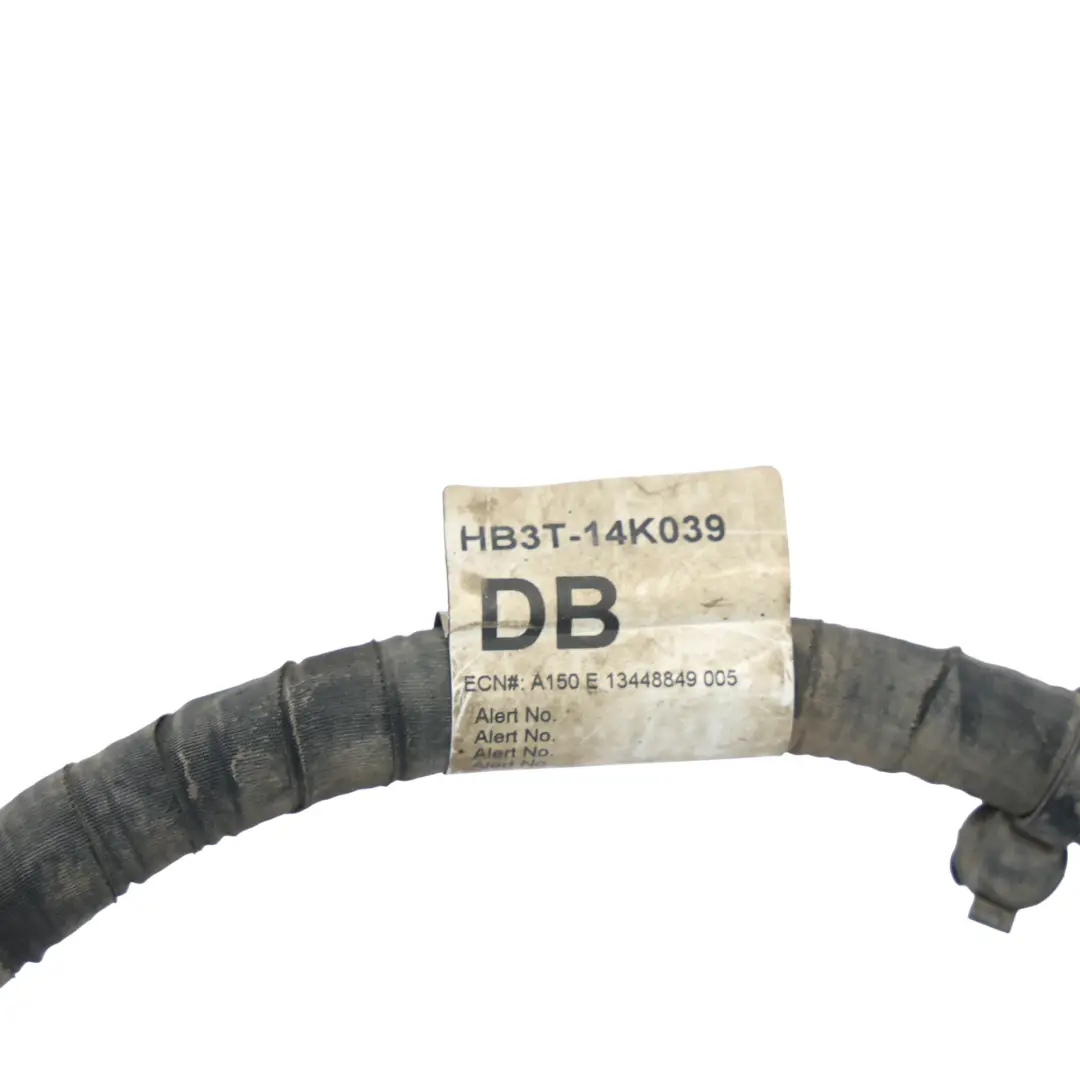

• OEM Part Number: HB3T-14K039-DB
• Substitutable numbers: HB3T-14K039-DB, HB3T14K039DB, 2198347
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function of the Harness

The presented wiring harness is dedicated to the automatic transmission system in the Ford Ranger Mk3 with a diesel engine. Its purpose is to safely route signals between control components, which translates to precise gear shifting, correct response to sensor signals, and stable integration with the vehicle's electronics. Thanks to the appropriate layout of connectors and wires, the harness maintains the factory logic for the installation in the engine bay and around the gearbox.

Construction and Fitment in the Cables, Harnesses, and Connectors Category

This component belongs to the Cables, Harnesses, and Connectors group, meaning it is designed for durability in the engine bay and transmission area. Properly selected wire gauges, insulation, and factory connectors minimize the risk of voltage drops, signal interference, and communication issues between the control unit and gearbox sensors. The harness is designed for installation in original mounting points, facilitating servicing and reducing replacement time.

Benefits of Using an Original Harness

Using an original transmission wiring harness in the Ford Ranger Mk3 with a diesel engine and automatic transmission allows for maintaining the factory operating parameters of the powertrain. Key benefits include:

• maintaining correct communication between the transmission control unit, sensors, and actuators,
• reducing the risk of electrical errors and gear shifting problems,
• easier diagnostics in case of potential faults, due to compliance with the factory wiring diagram,
• installation without the need for modifications to the existing wiring or the use of adapters.

For users considering the choice between refurbishment and installing a used part, an article describing the differences between these solutions might be helpful – you can find more information in the material Refurbished or Used Original – Which Part to Choose for Repair?.

Condition, Origin, and Practical Application

The offered wiring harness is a used component, which translates to the possibility of obtaining an original part at an attractive price, while maintaining factory fitment for a specific diesel engine and automatic transmission configuration. This type of solution is particularly beneficial for repairs where compliance with the factory installation is crucial and minimizing vehicle downtime is important. The harness is suitable for both replacing a damaged section of the wiring and for comprehensive repair of the transmission control system.

Related Electrical System Components

If, during gearbox servicing, you also plan to replace other electrical system components related to the transmission or powertrain in vehicles of this brand, check the available parts in the BMW Cables, Harnesses, and Connectors category.
